TEM XP XL

from 500 to 600
CHAMBER LENGTH (mm)
from 2 to 16
OPERATION PRESSURES (BAR)
410
INTERNAL CHAMBER MEASURES (mm)
TEM XP XL

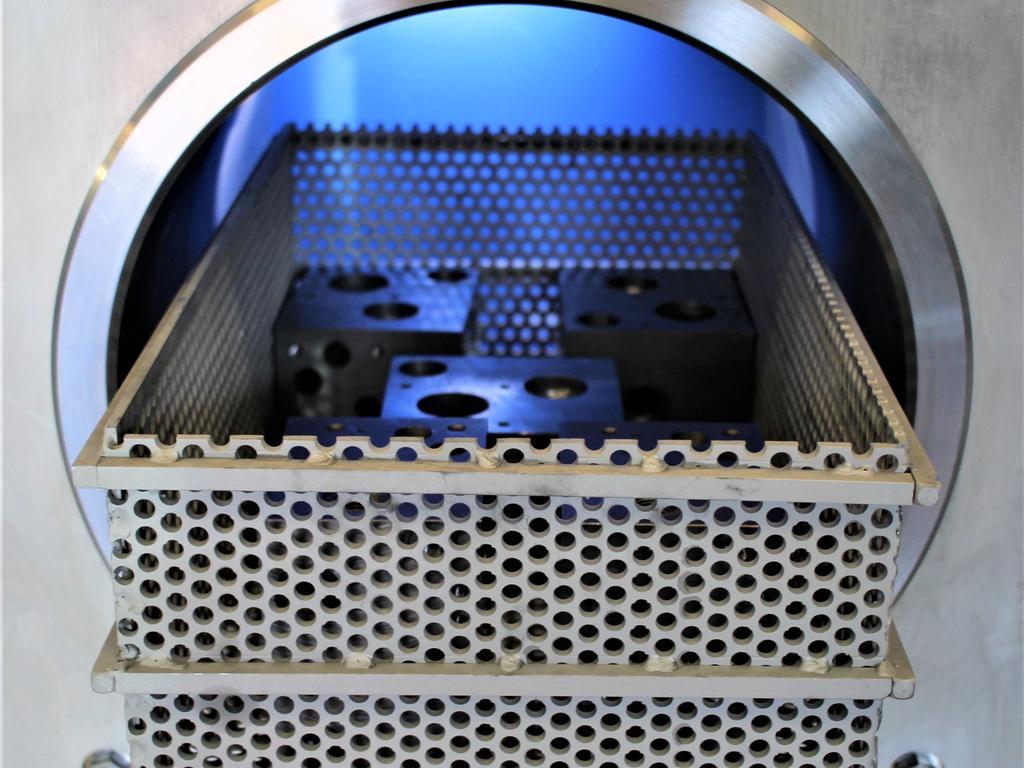

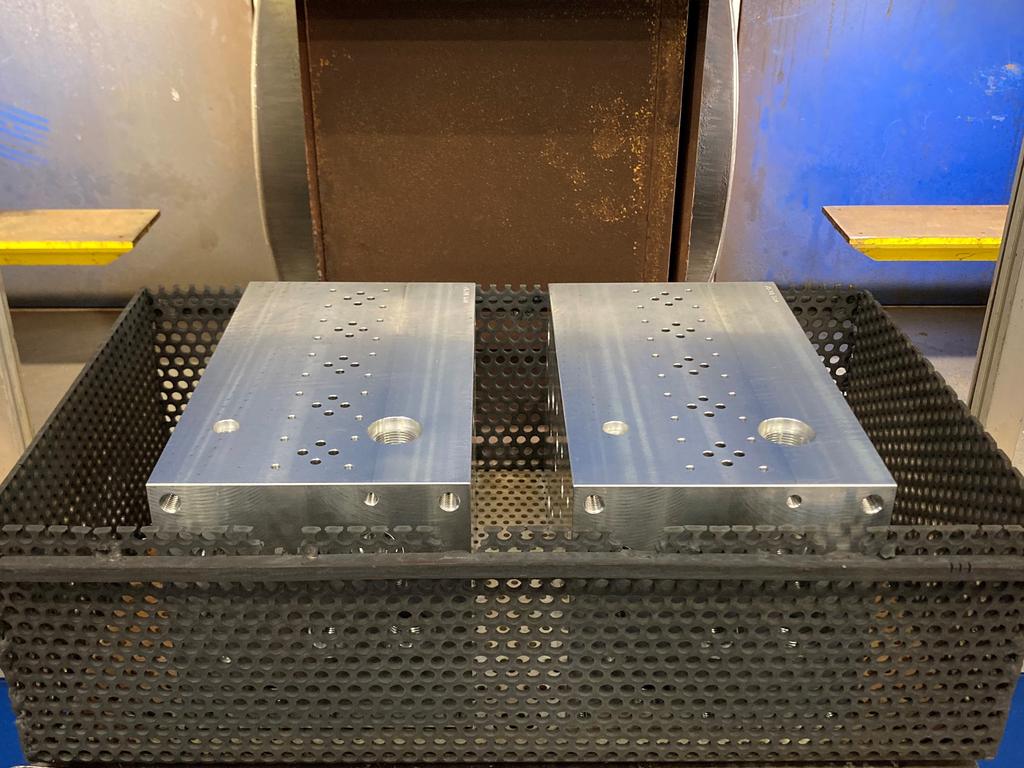

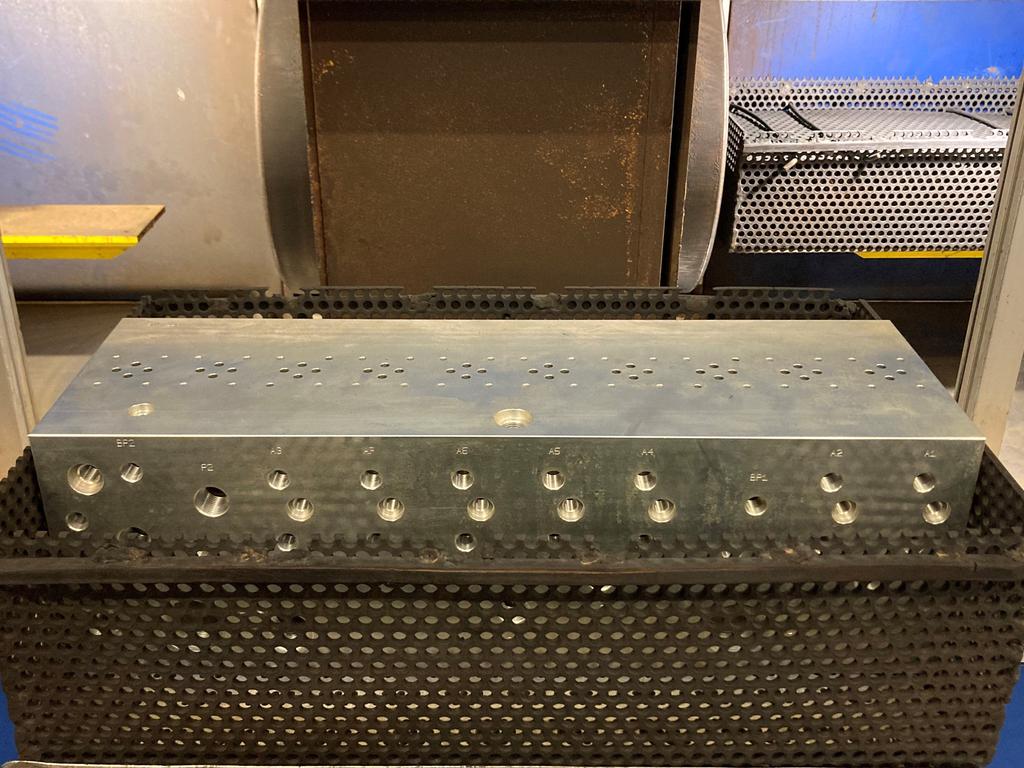

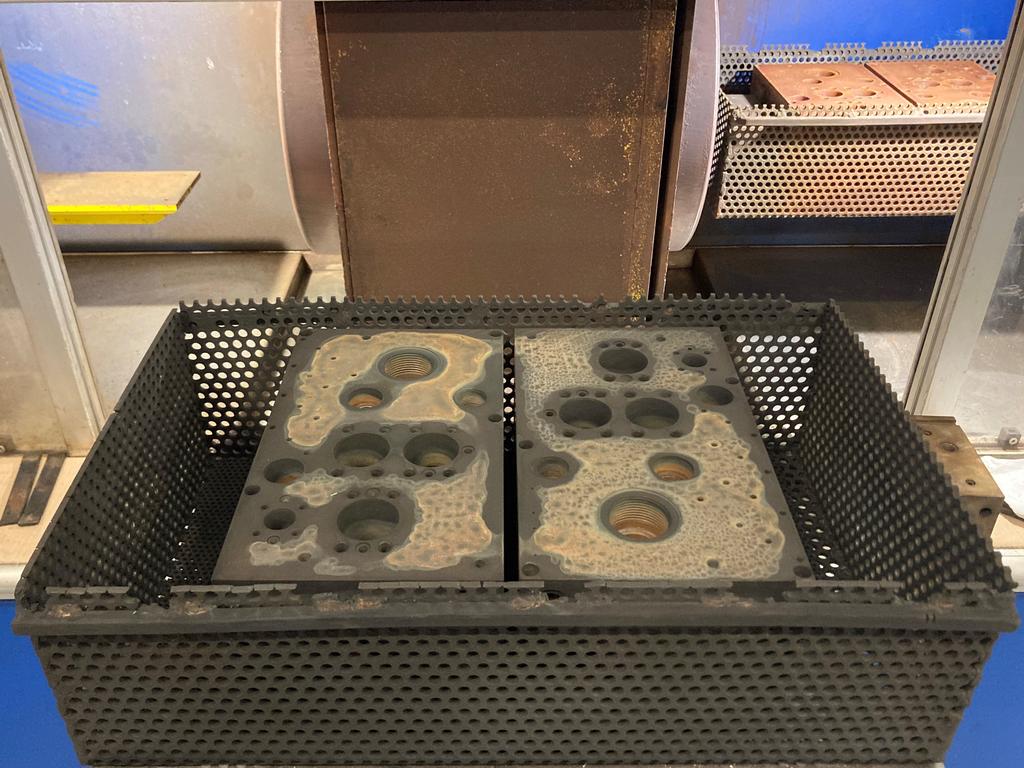

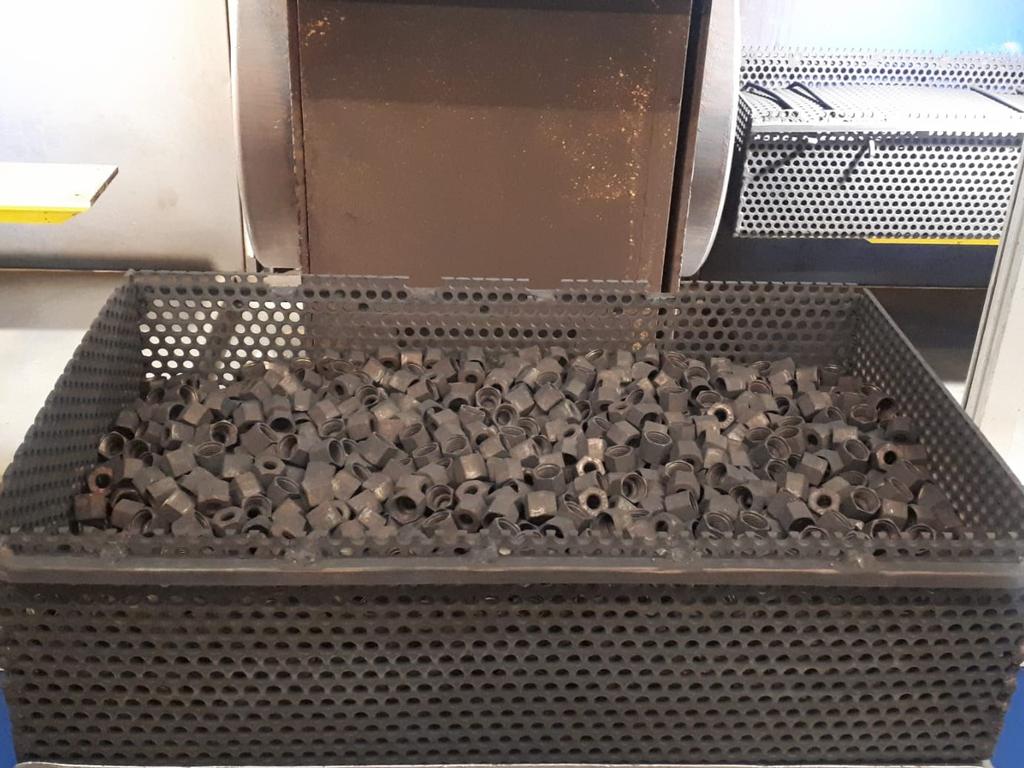

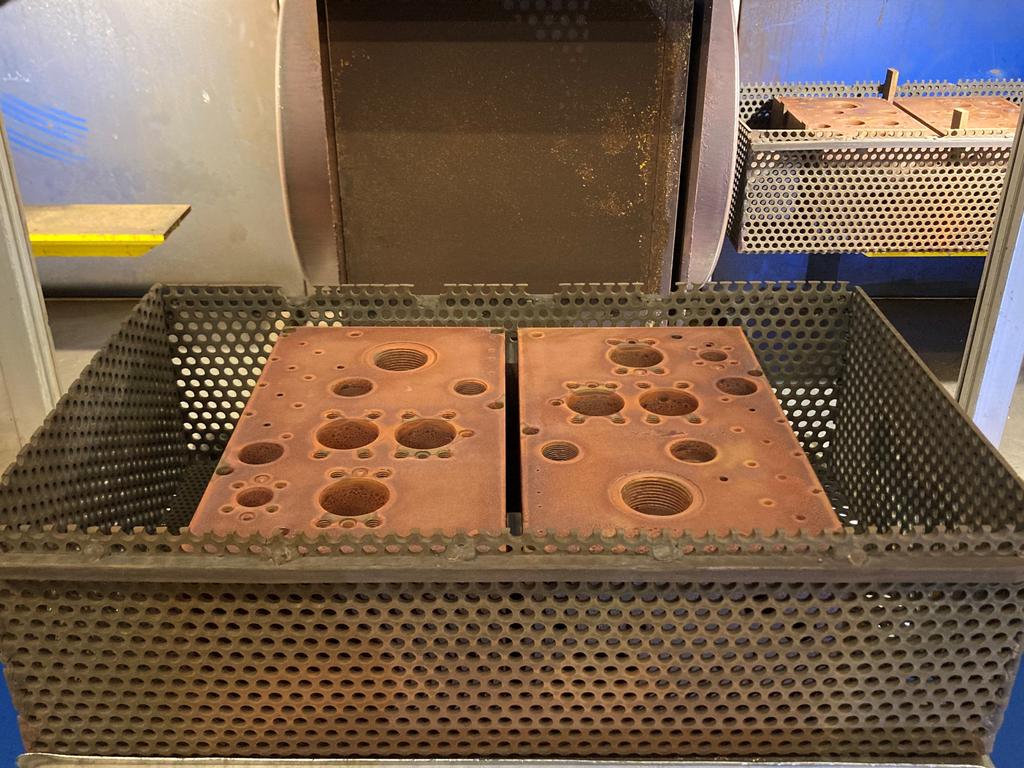

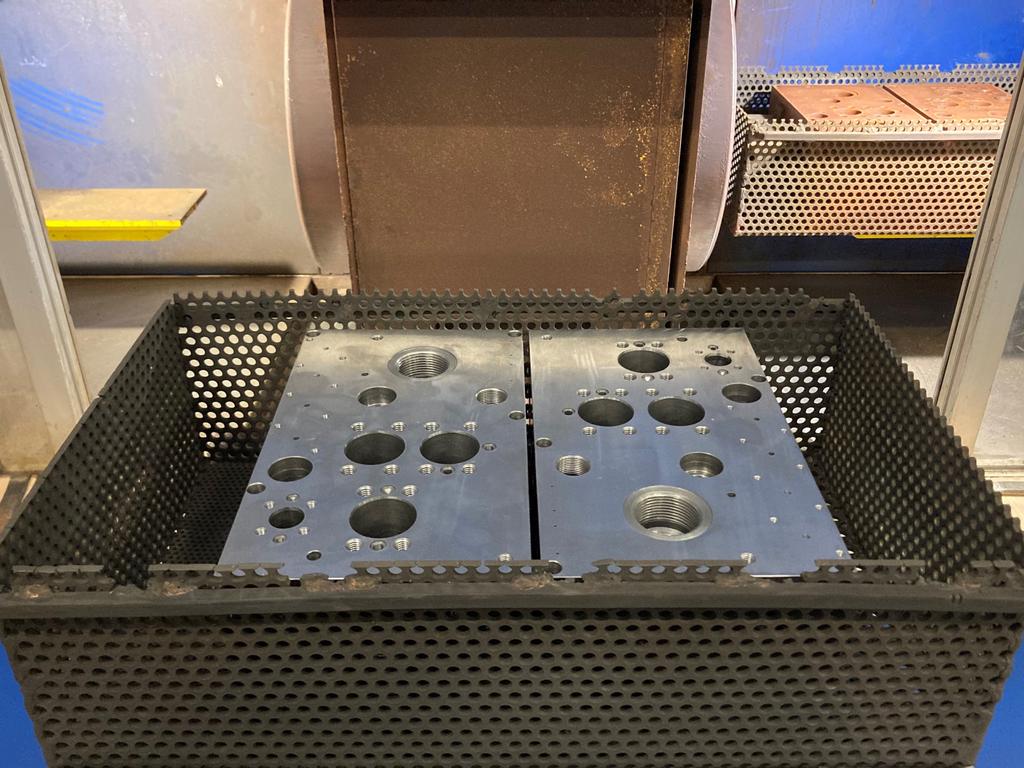

The XP XL Thermal Deburring Machine is designed for the deburring of large blocks of aluminum, steel and cast iron being able to use an operating pressure from 2 to 16 bar, it has a deburring chamber with a diameter of 410mm and a length of up to 600mm; also ideal for deburring very large quantities of iron components in bulk.

New-Tem Deburring Machines can be certified as conforming to INDUSTRY 4.0 measures.

The machines can be served by robotic feeding systems, with automated or manual roller systems according to customer requests.

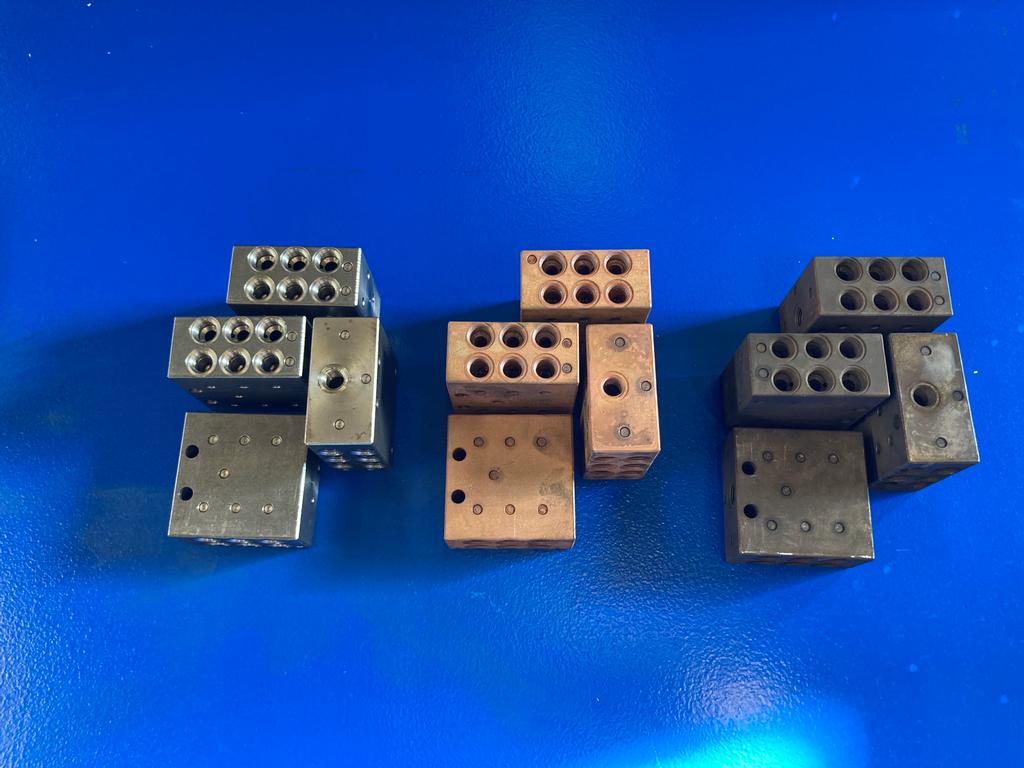

TREATABLE MATERIALS
STEEL
CAST IRON
ALUMINUM
ZAMAK
COPPER
BRASS

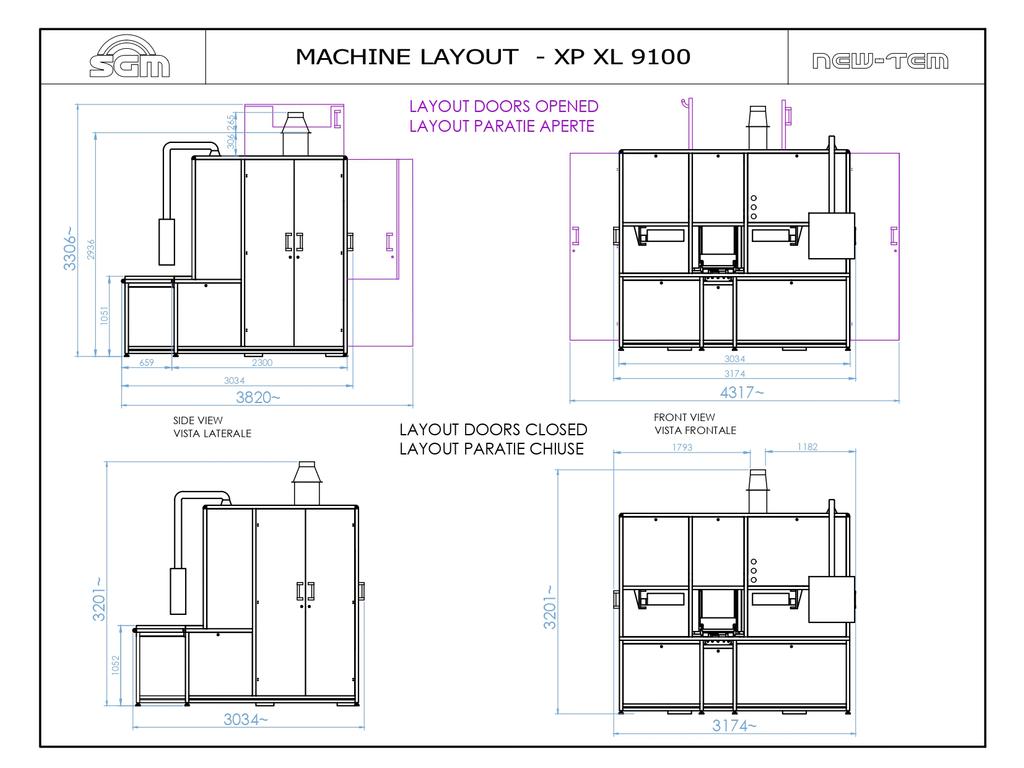

SPECIFICATIONS

test 1
test 1 test 2
Length [mm]
3034
Width [mm]
3174
Height [mm]
(with predisposition for flue)
2.935(3.200)
Weight [kg]
14.000
Length [mm]
FROM 500 TO 600
Diameter [mm]
410
Length [mm]
from 480 to 580
Height [mm]
180
Width [mm]
330
Operating pressure [Bar]
from 2 to 16
Installed power [kW]
20 kW
Power supply voltage
380V 50Hz (3P+N+T)
Auxiliary voltage
24 V DC
Cycle time (sec)
75

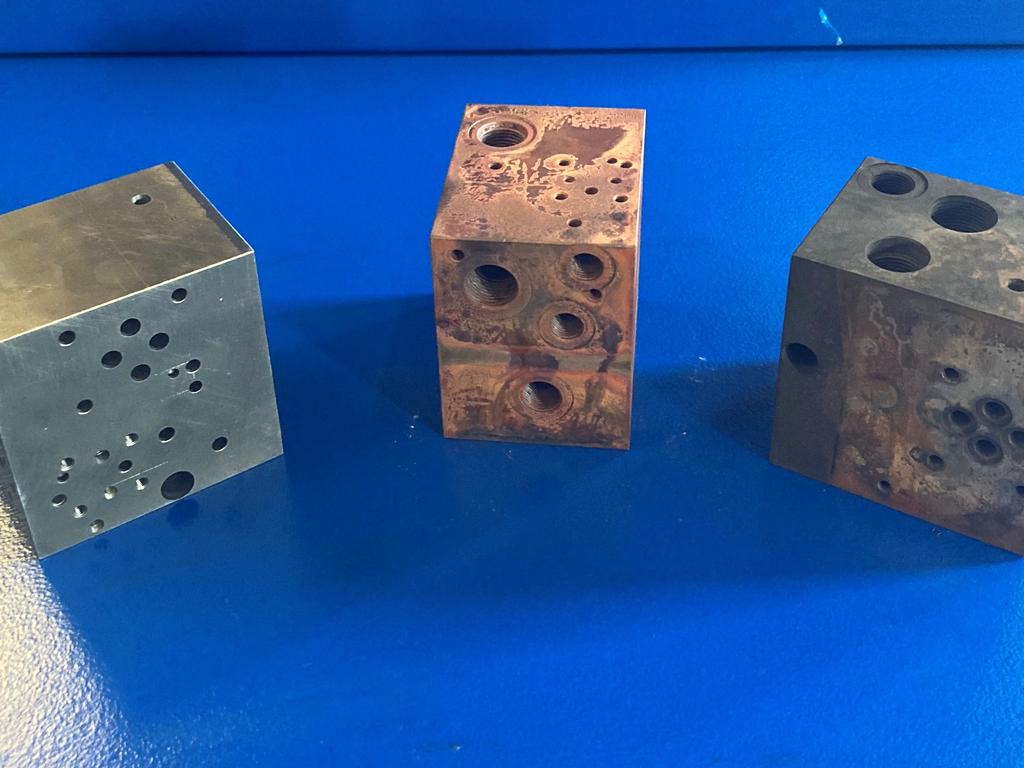

Applications
