TEM XP L

from 350 to 500
CHAMBER LENGTH (mm)
from 2 to 10
OPERATION PRESSURES (BAR)
260
INTERNAL CHAMBER MEASURES (mm)
TEM XP L

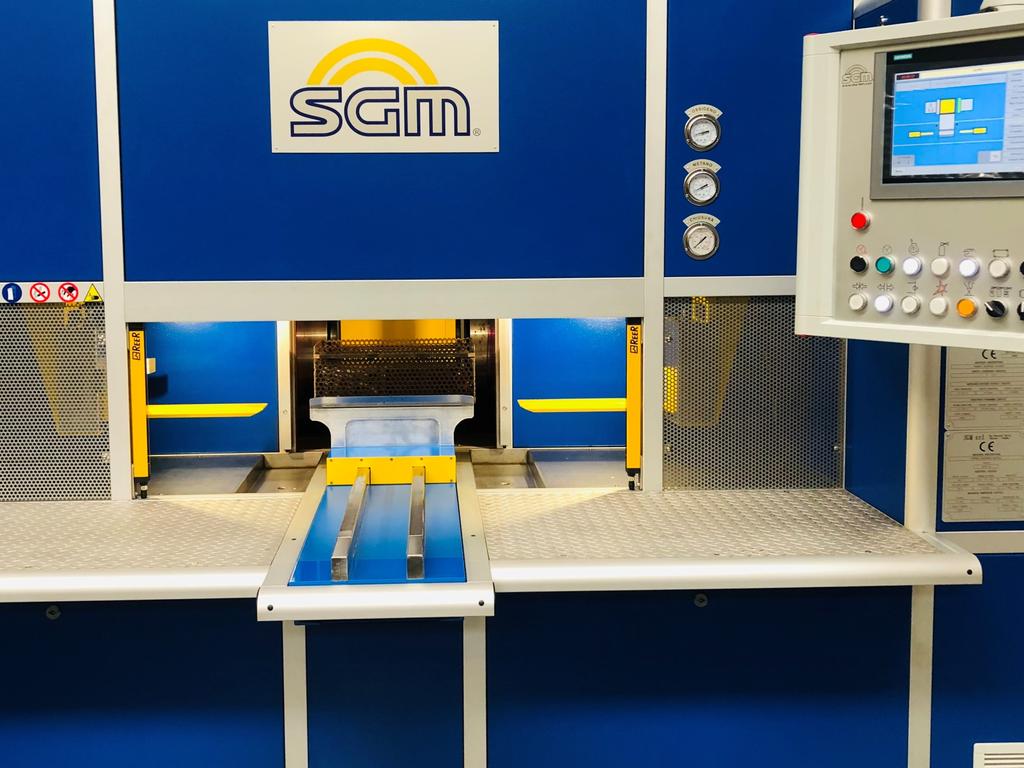

The XP L Thermal Deburring Machine is designed for “light” alloys such as aluminum, zamak, copper and their alloys, with deburring chamber having internal diameter 260 mm and variable length from 360 to 500 mm; it works with operating pressures from 2 to 10 bar. It is particularly suitable for deburring large aluminum blocks. Very fast, it guarantees very high productivity.

New-Tem Deburring Machines can be certified as conforming to INDUSTRY 4.0 measures.

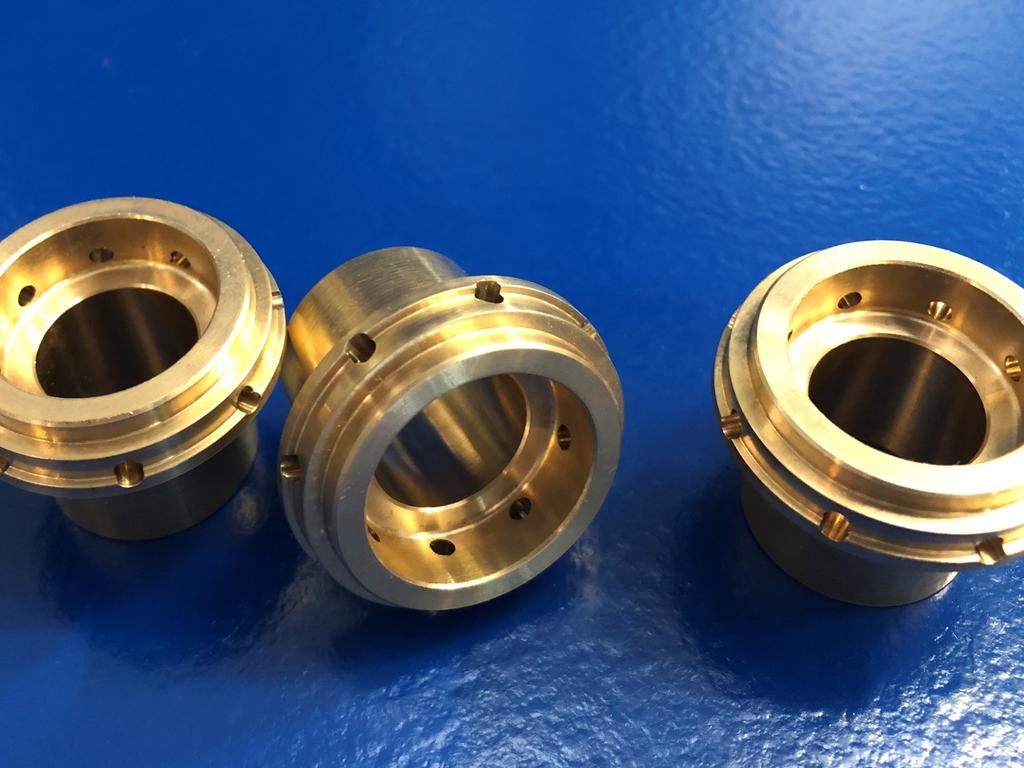

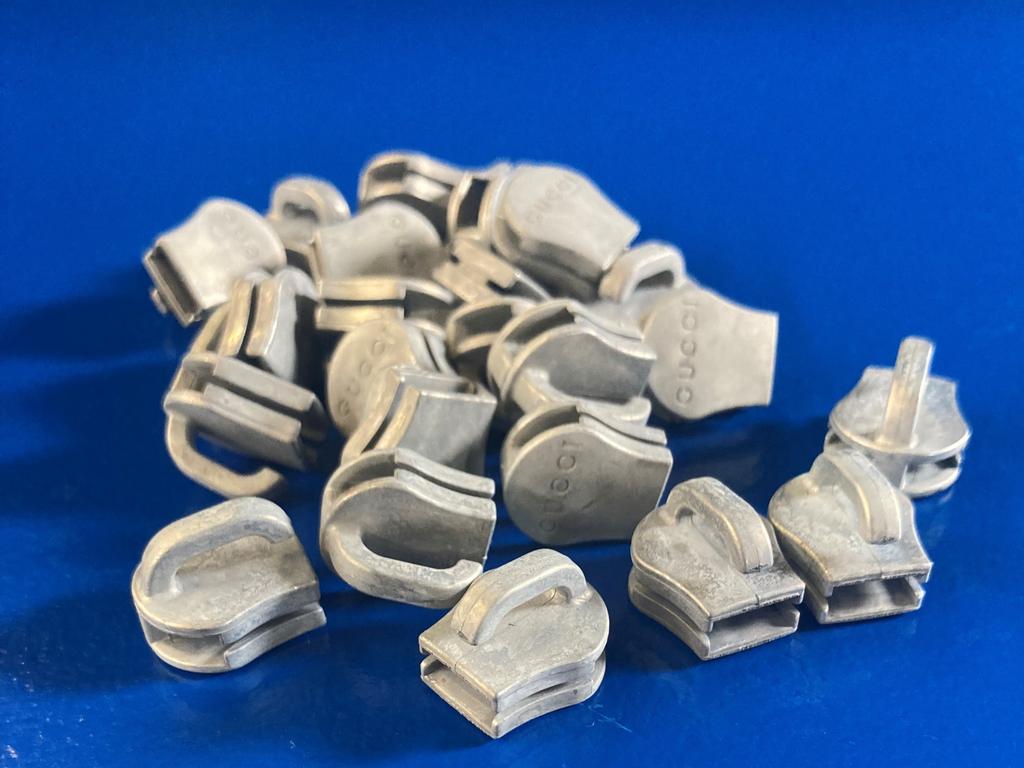

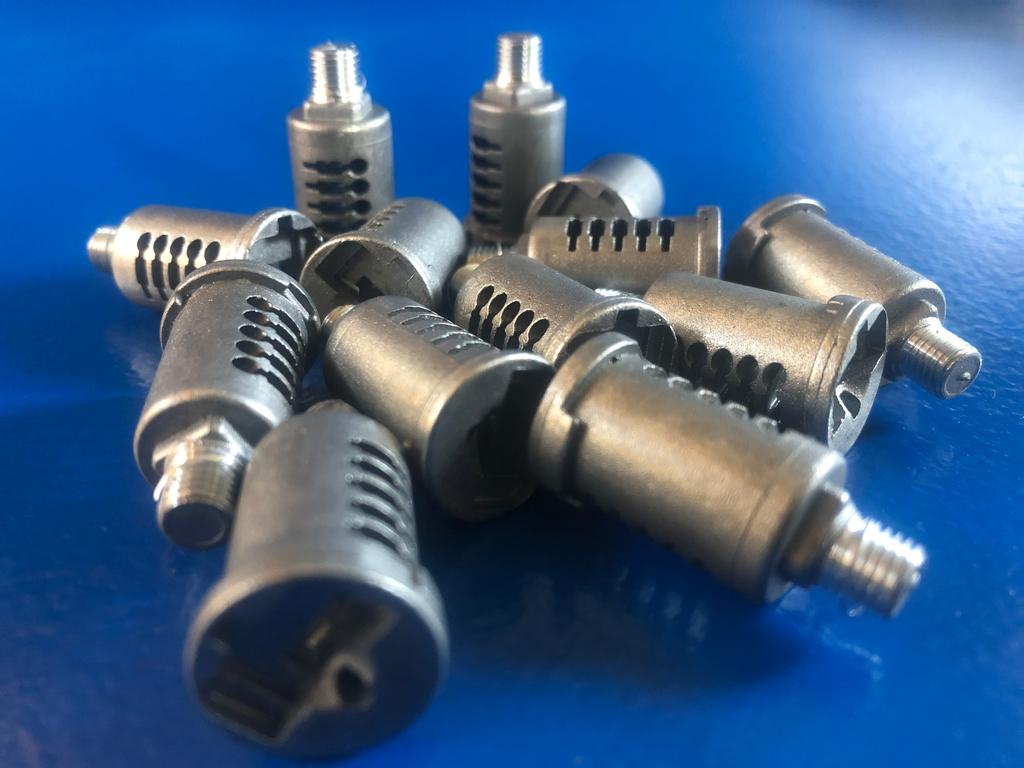

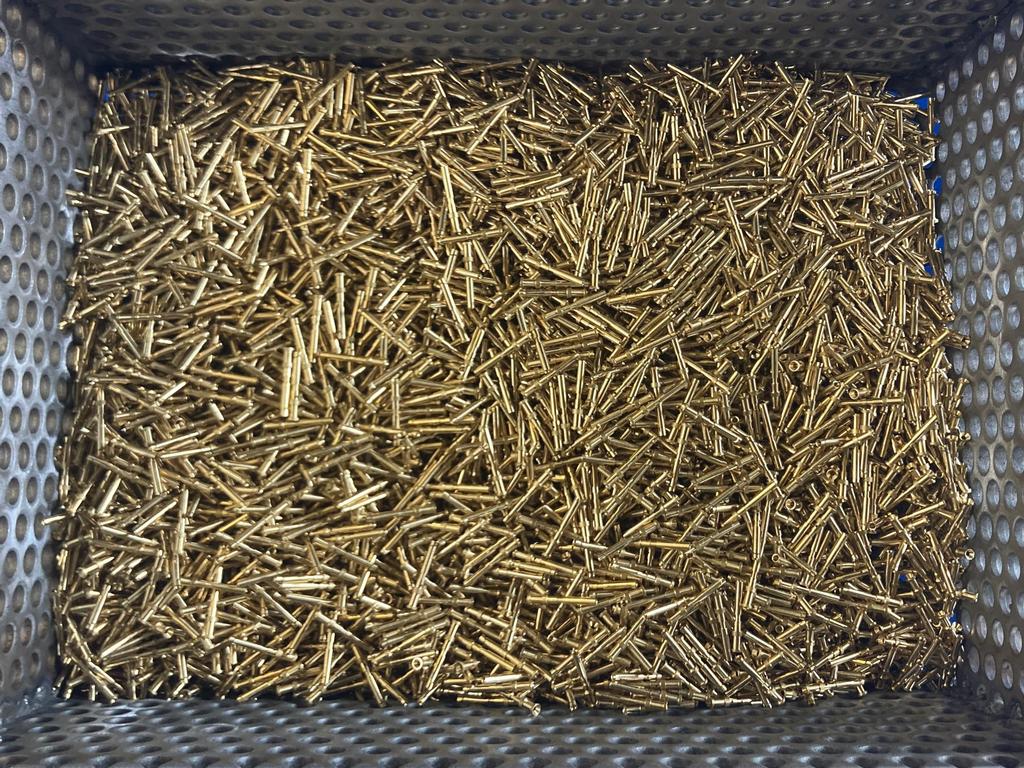

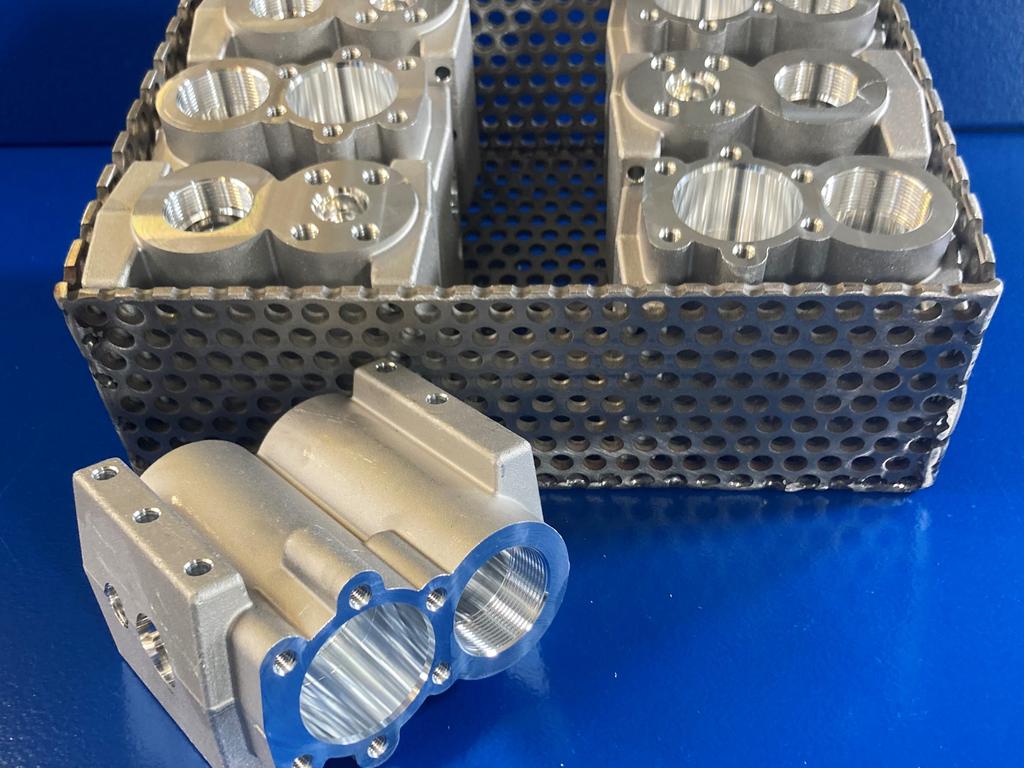

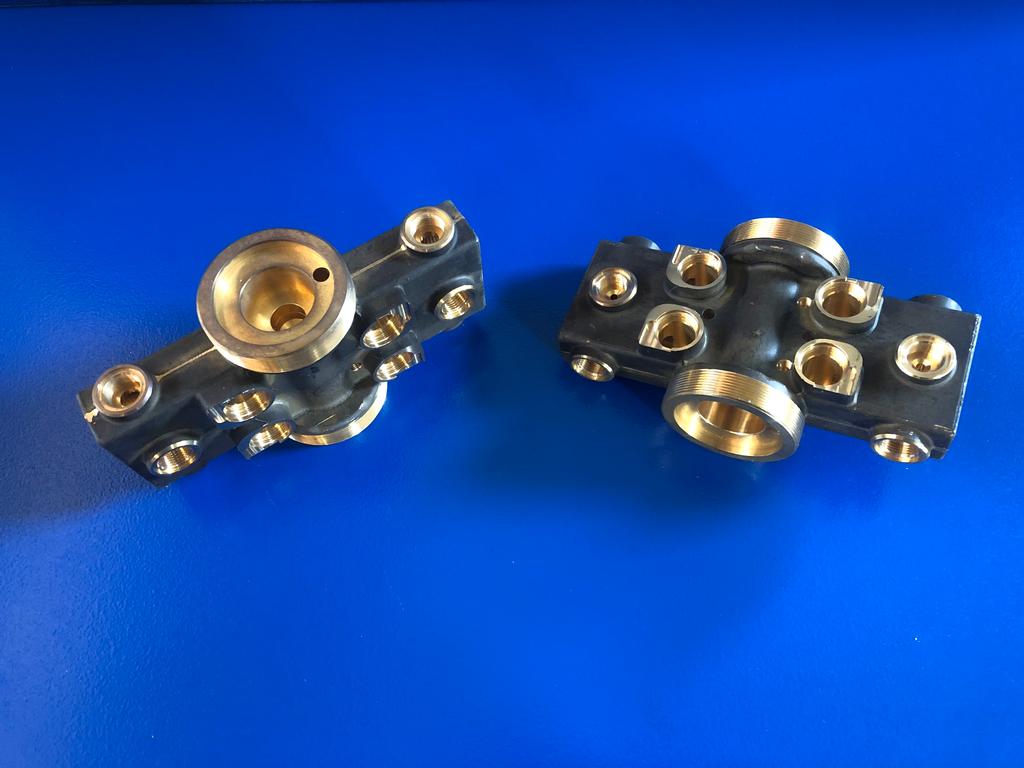

TREATABLE MATERIALS
ALUMINIUM
ZAMAK
KUPFER
MESSING

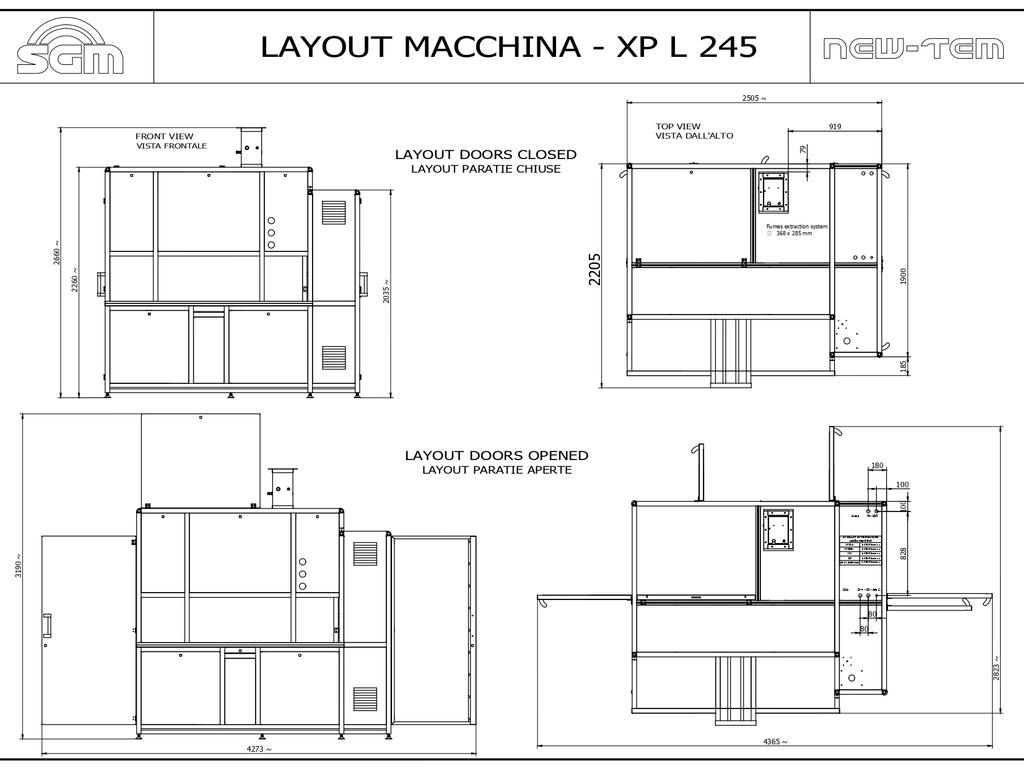

SPECIFICATIONS

Spezifikationen
Spezifikationen
Länge [mm]
2655
Breite [mm]
2400
Höhe [mm]
(mit Prädisposition für Schornstein)
2260 (2660)
Höhe der Arbeitsfläche [mm]
950
Gewicht [kg]
8500
Länge [mm]
von 350 bis 500
Durchmesser [mm]
260
Länge [mm]
Von 330 bis 480
Höhe [mm]
155
Breite [mm]
190
Betriebsdruck [Bar]
Von 2 bis 10
Installierte Leistung [kw]
20 kW
Stromversorgungsspannung
380V 50Hz (3P+N+T)
Hilfsspannung
24 V DC
Zykluszeit (sec)
45

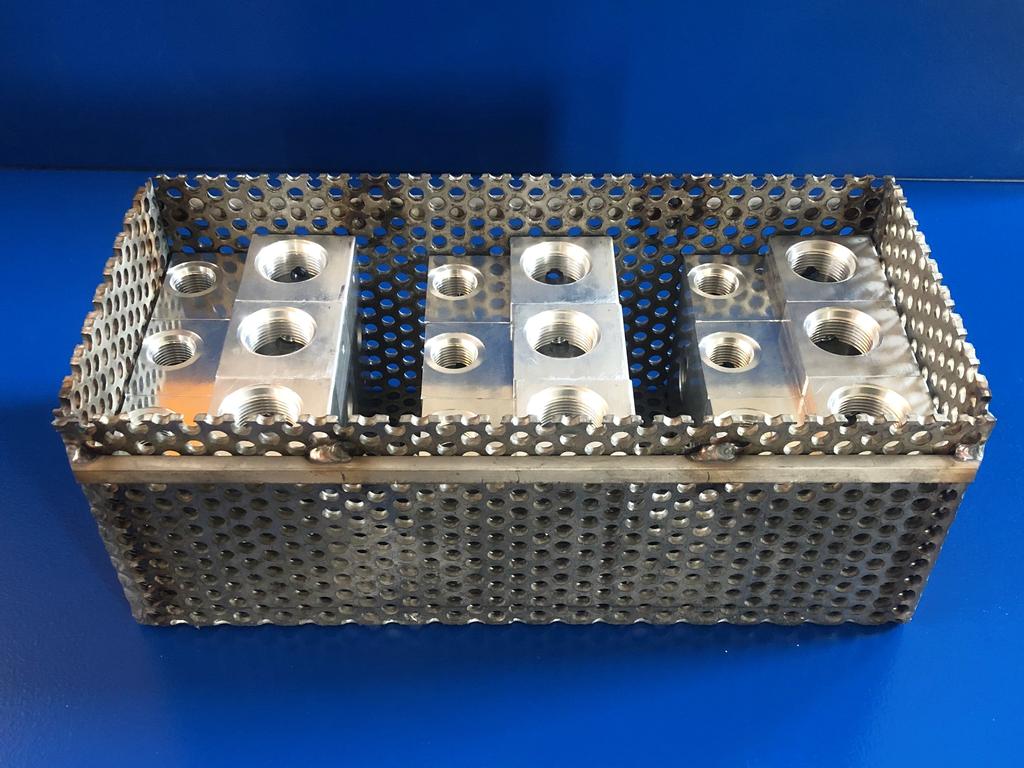

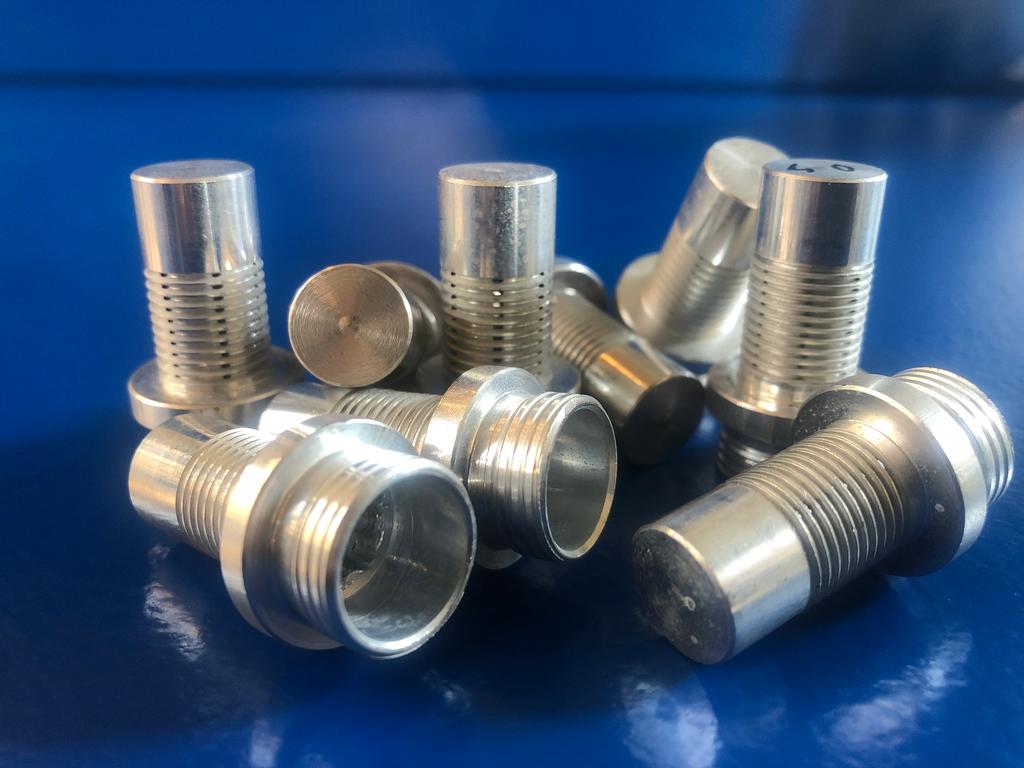

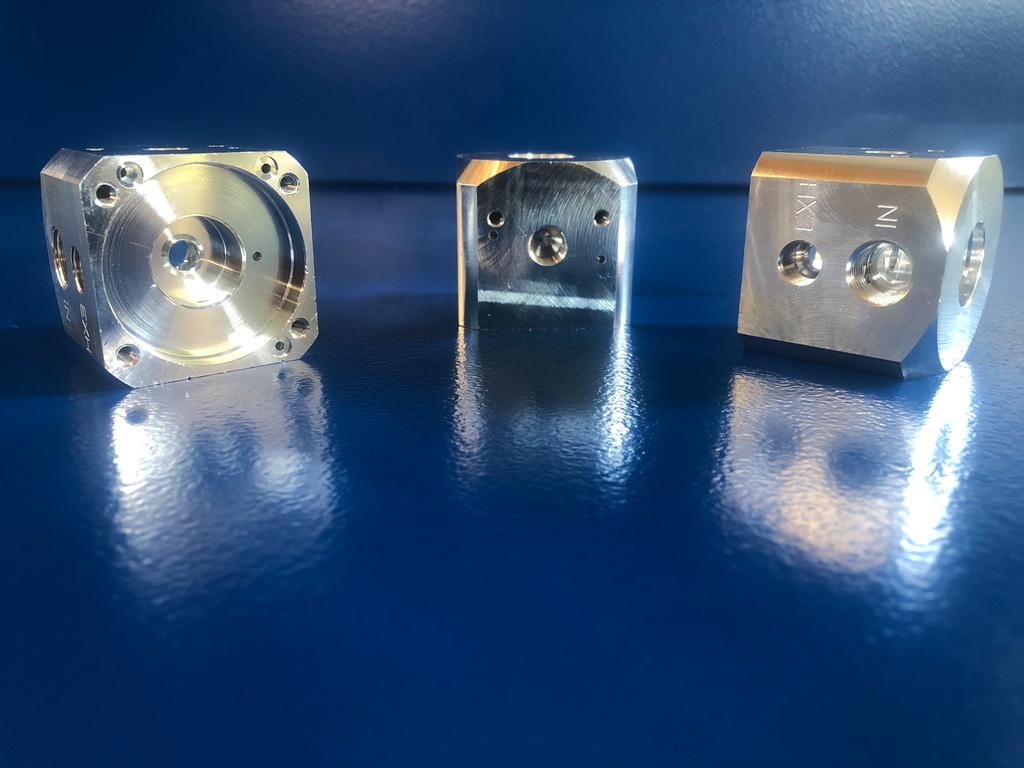

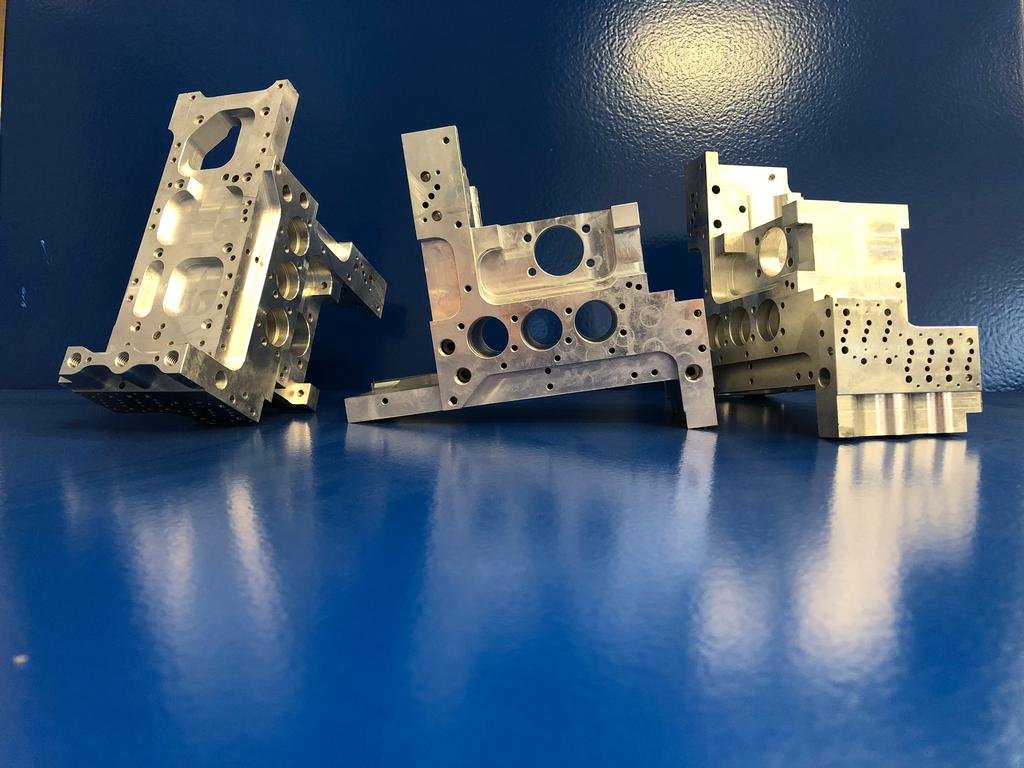

Anwendungen
