TEM XP F

from 350 to 500
CHAMBER LENGTH (mm)
from 2 to 20
OPERATION PRESSURES (BAR)
from 260 to 300
INTERNAL CHAMBER MEASURES (mm)

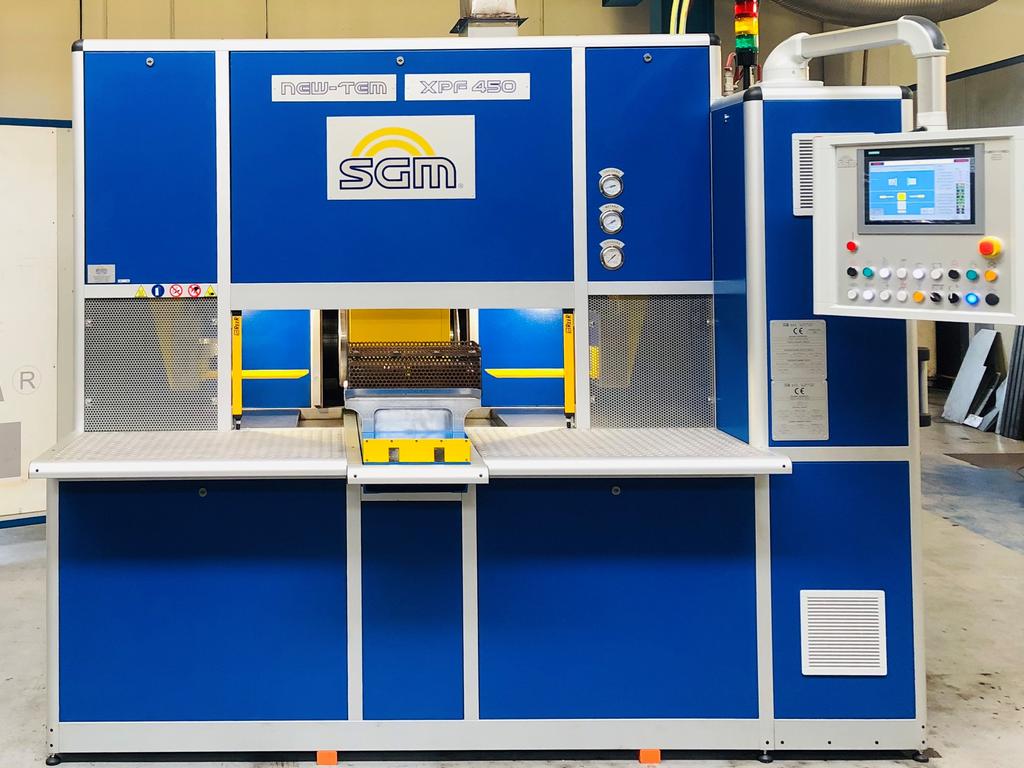

TEM XP F

XP F (F = flexible) can deburr both components in cast iron, steel and ferrous alloys with a complete cycle (2 blows) and components in aluminum, copper, its alloys and zamak with a single cycle.

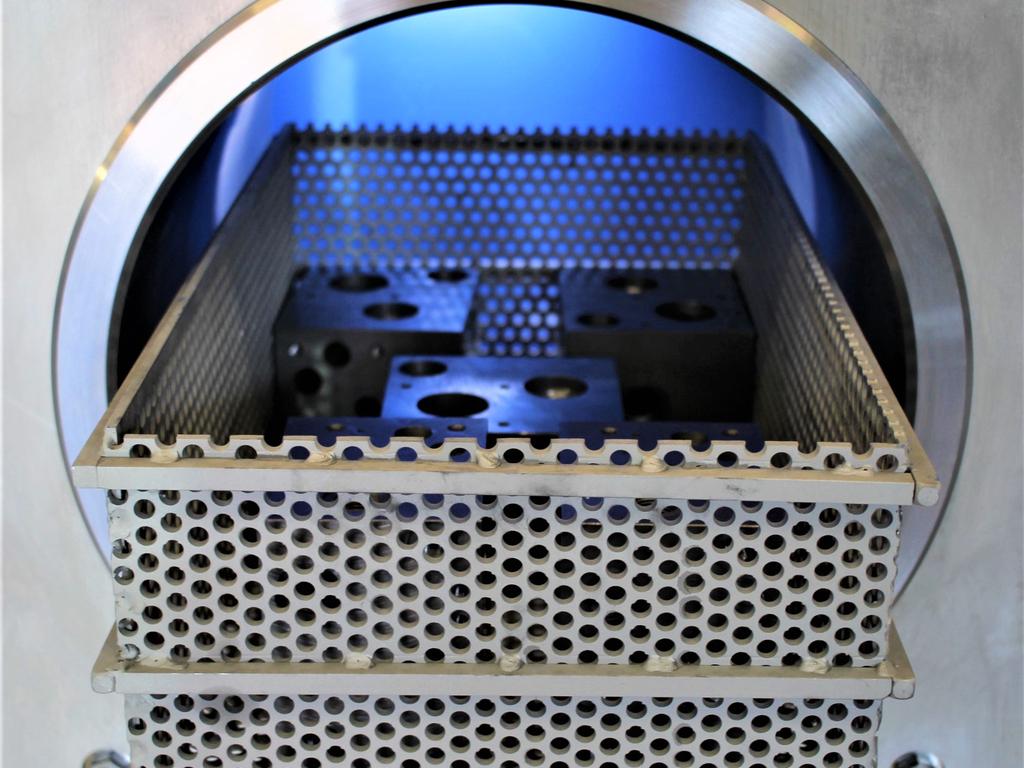

The XP F is available both with a 260mm diameter chamber and variable length from 350mm to 500mm and operating pressure between 2 Bar and 20Bar, and with a 300mm diameter chamber and variable length from 420mm to 500mm and operating pressure between 2 Bar. and 15Bar; the size of the chamber is determined on the basis of the production needs of our customers.

New-Tem deburring machines can be certified as conforming to INDUSTRY 4.0 measures.

The machines can be served by robotic feeding systems or with automated or manual roller systems.

TREATABLE MATERIALS
STEEL
CAST IRON
ALUMINUM
ZAMAK
COPPER
BRASS

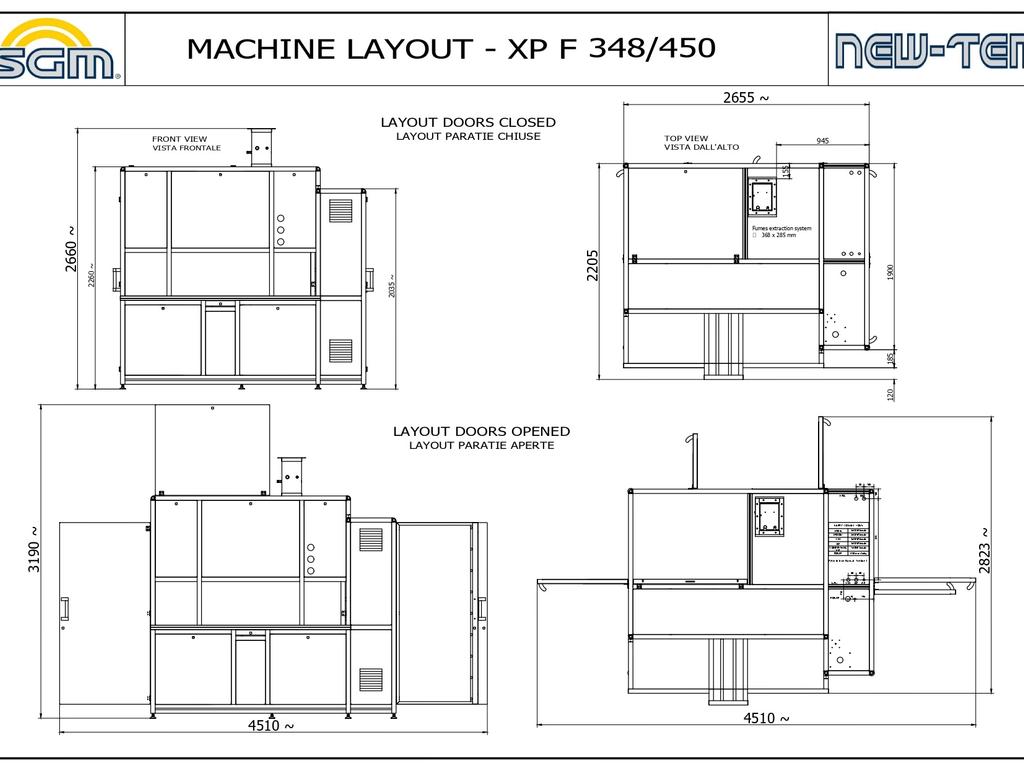

SPECIFICATIONS

Specifications
Specifications
Length [mm]
2.655
Width [mm]
2.085
Height [mm]
(with predisposition for flue)
2.260 (2.660)
Working shipment height [mm]
950
Weight [kg]
10.500
Length [mm]
from 350 to 500
Diameter [mm]
from 260 to 300
Length [mm]
from 330 to 480
Height [mm]
from 155 to 180
Width [mm]
from 190 to 240
Operating pressure [Bar]
from 2 to 20
Installed power [kW]
20
Power supply voltage
380V 50Hz (3P+N+T)
Auxiliary voltage
24 V DC
Cycle time (sec)
50

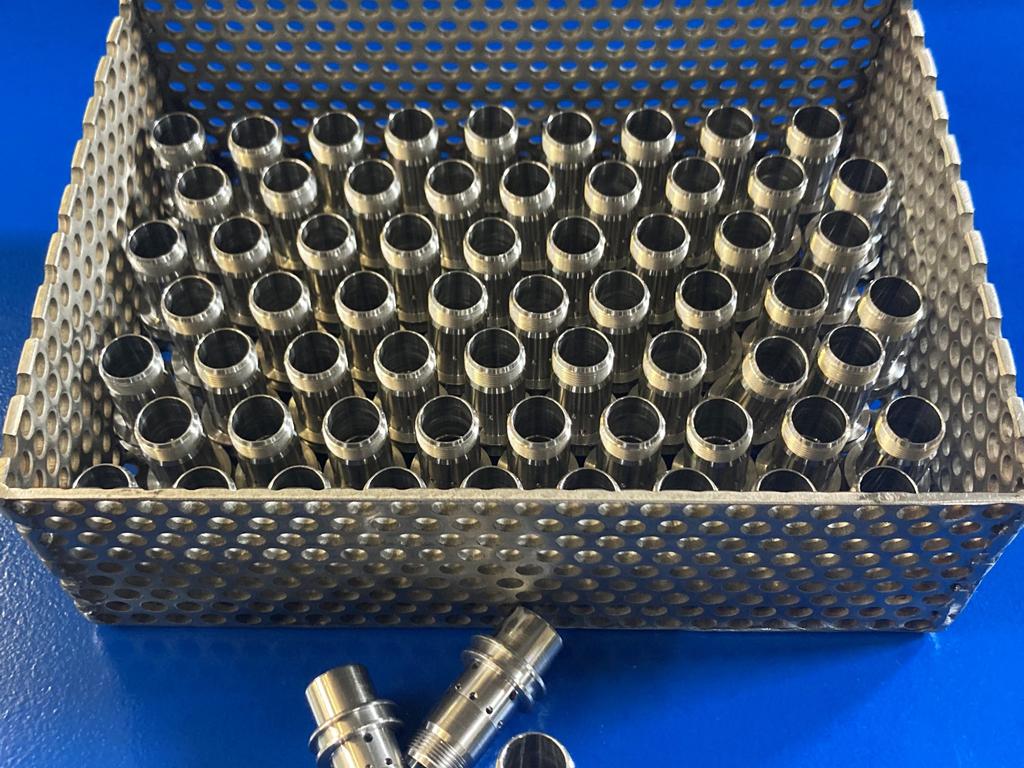

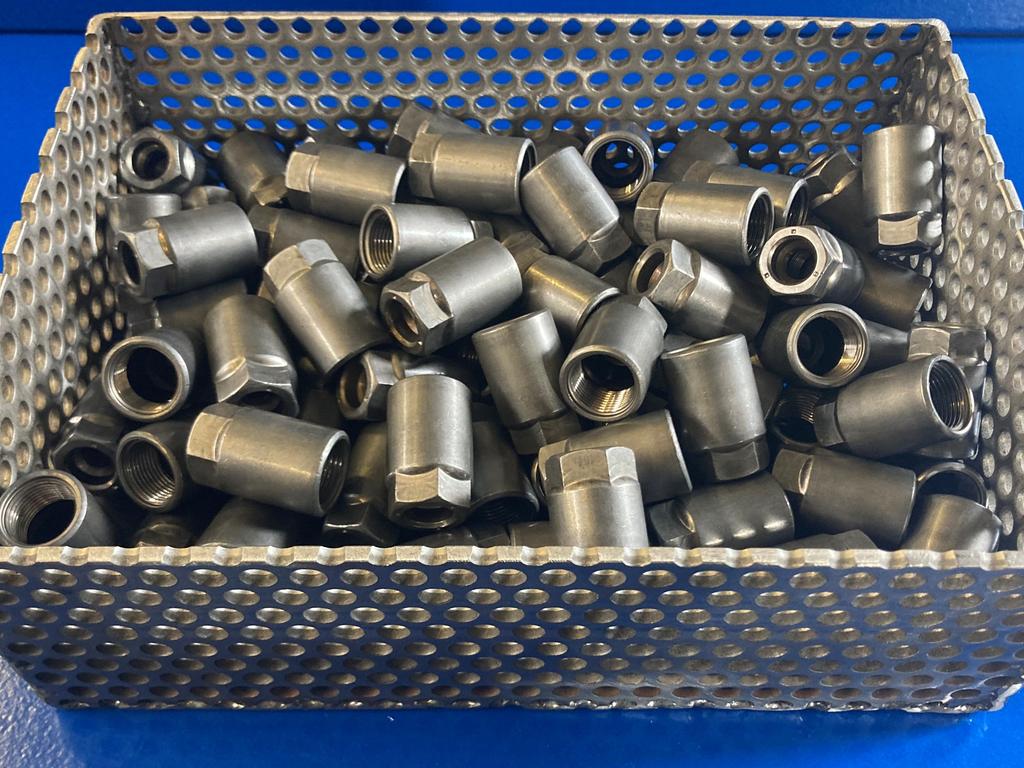

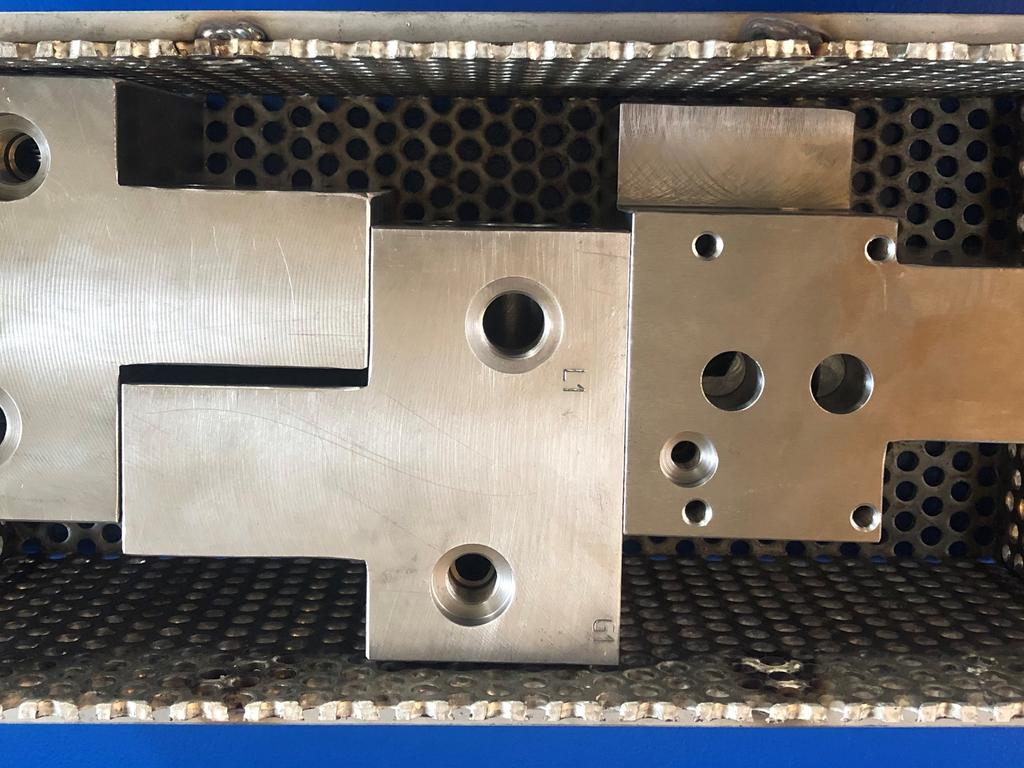

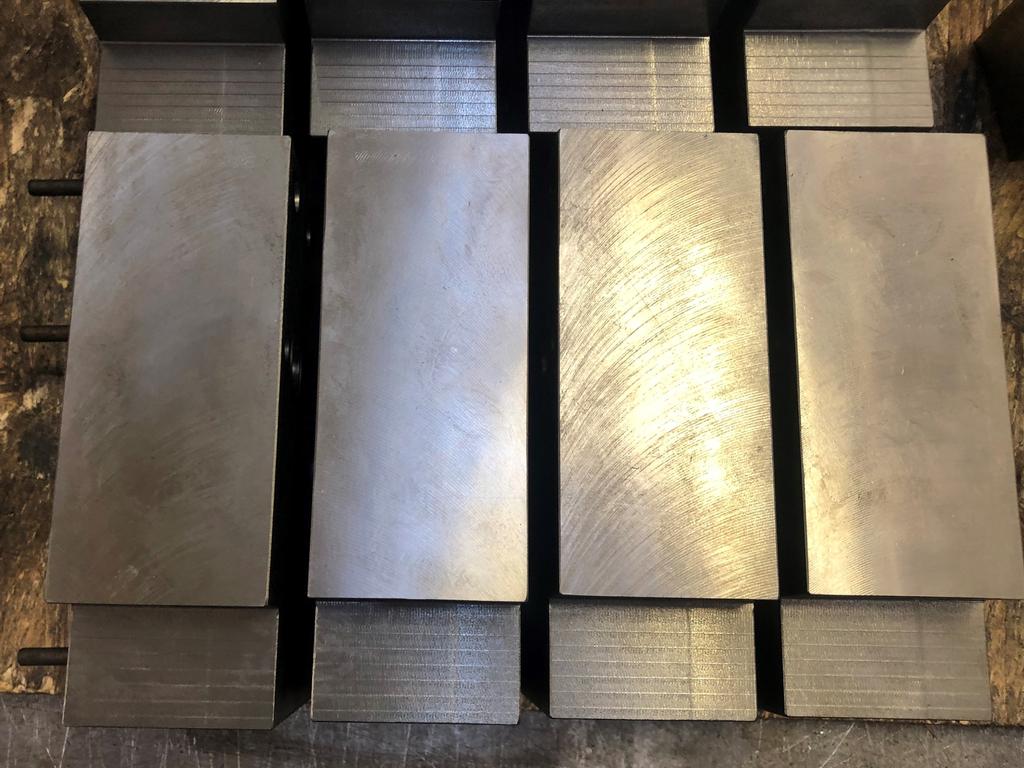

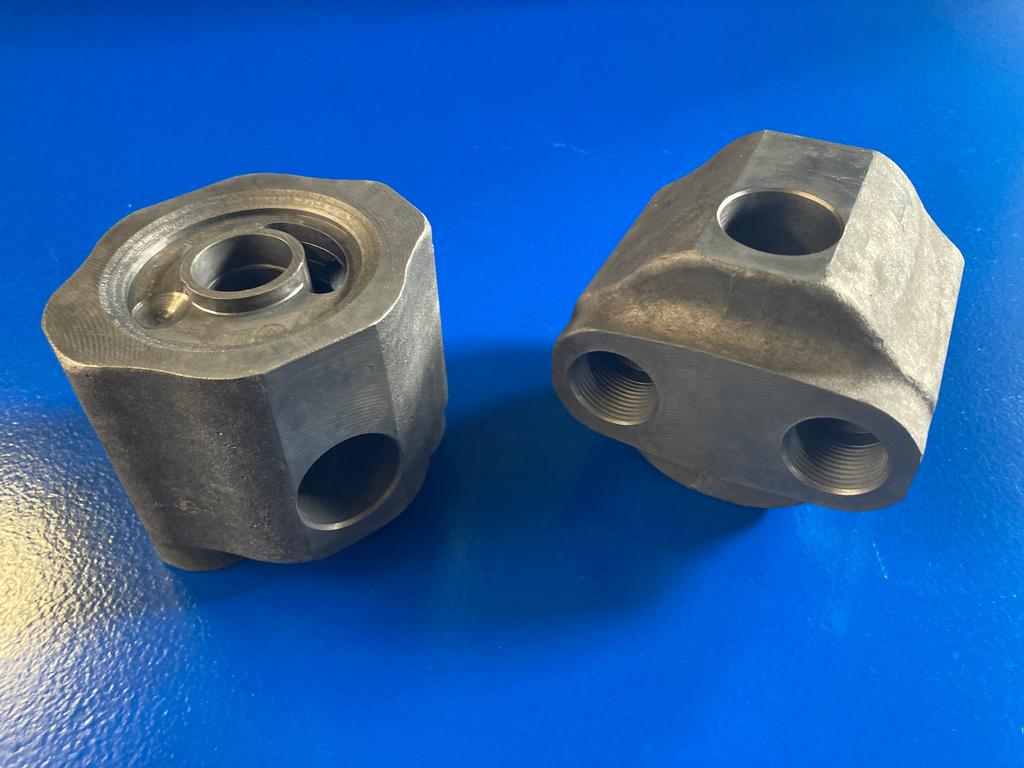

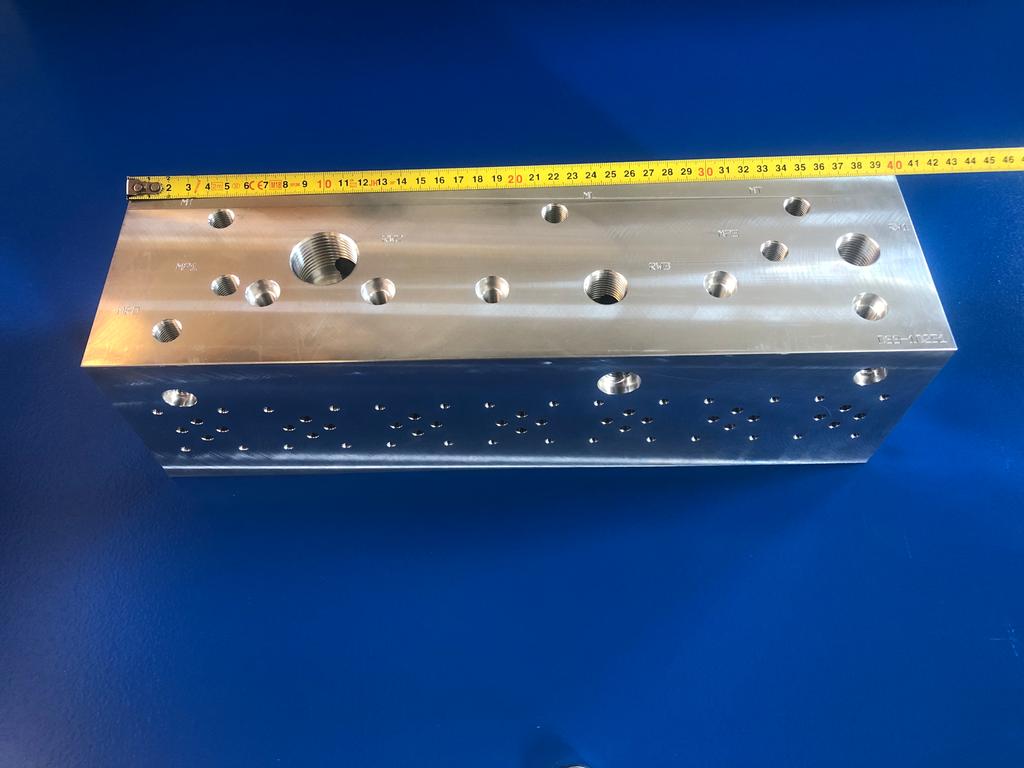

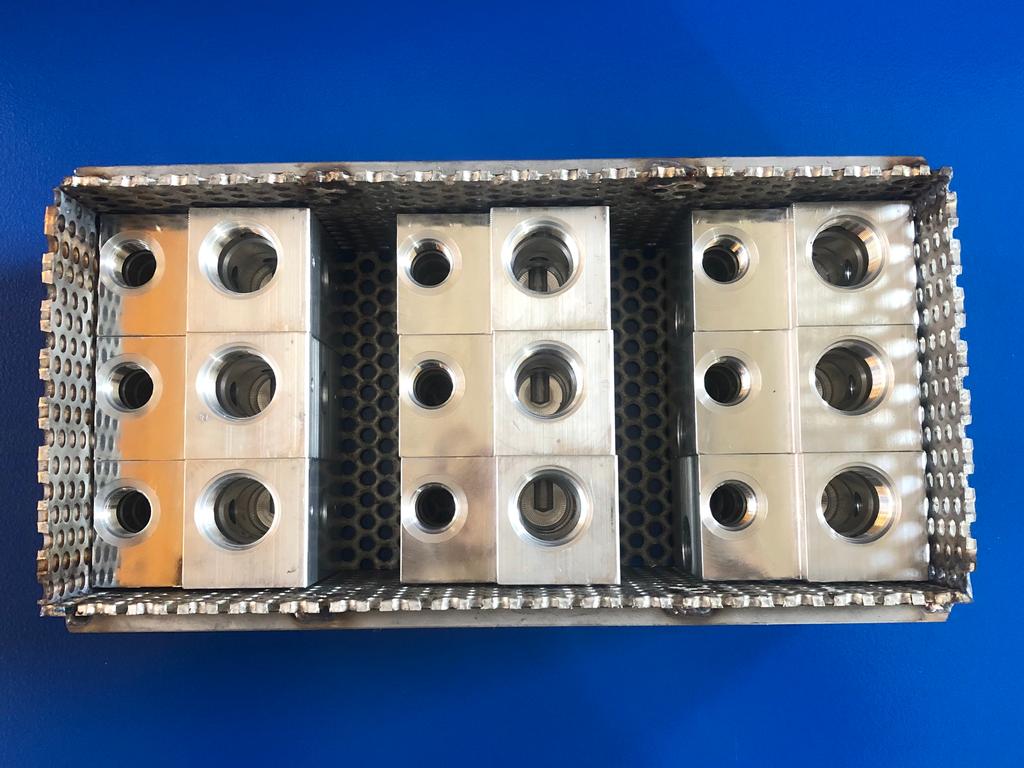

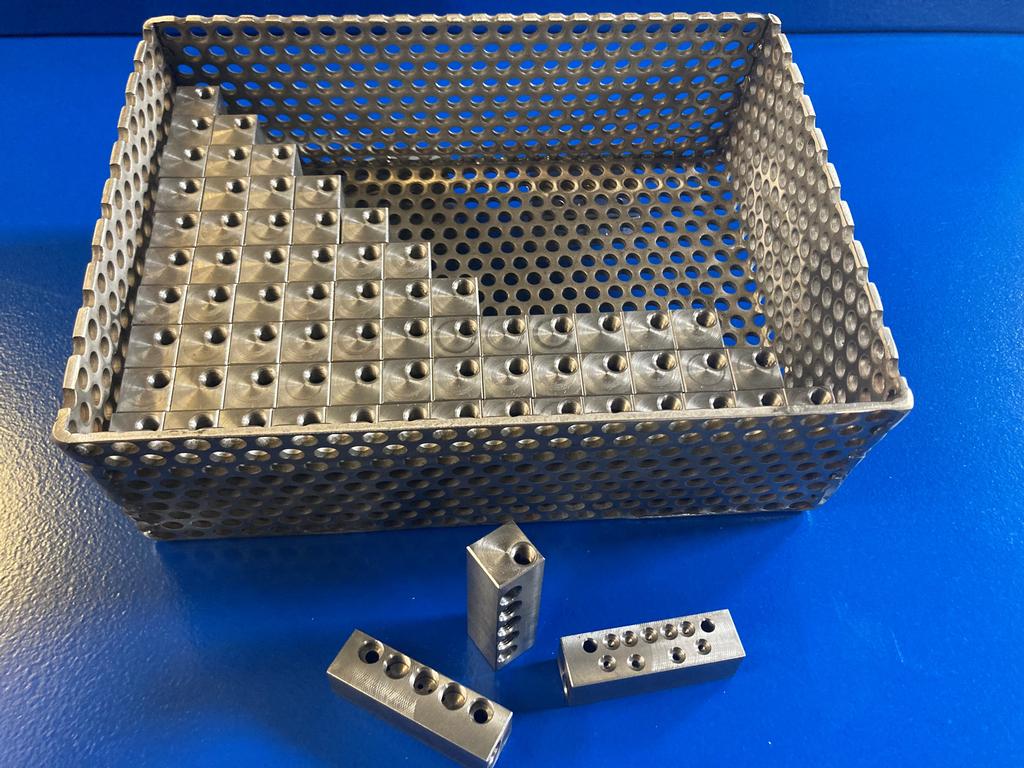

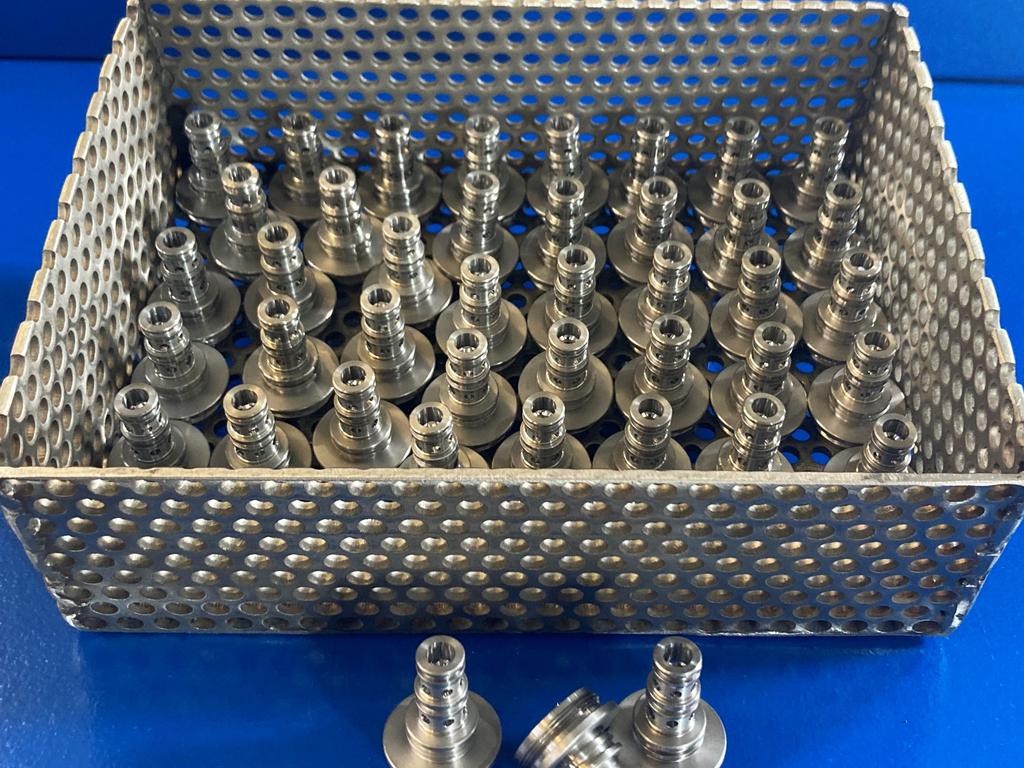

Applications
