WM 800

4
NUMBER OF TANKS
Power 600 W - Frequency 20.500 hz
ULTRASOUND
From 18 min
CYCLE TIME
WM 800

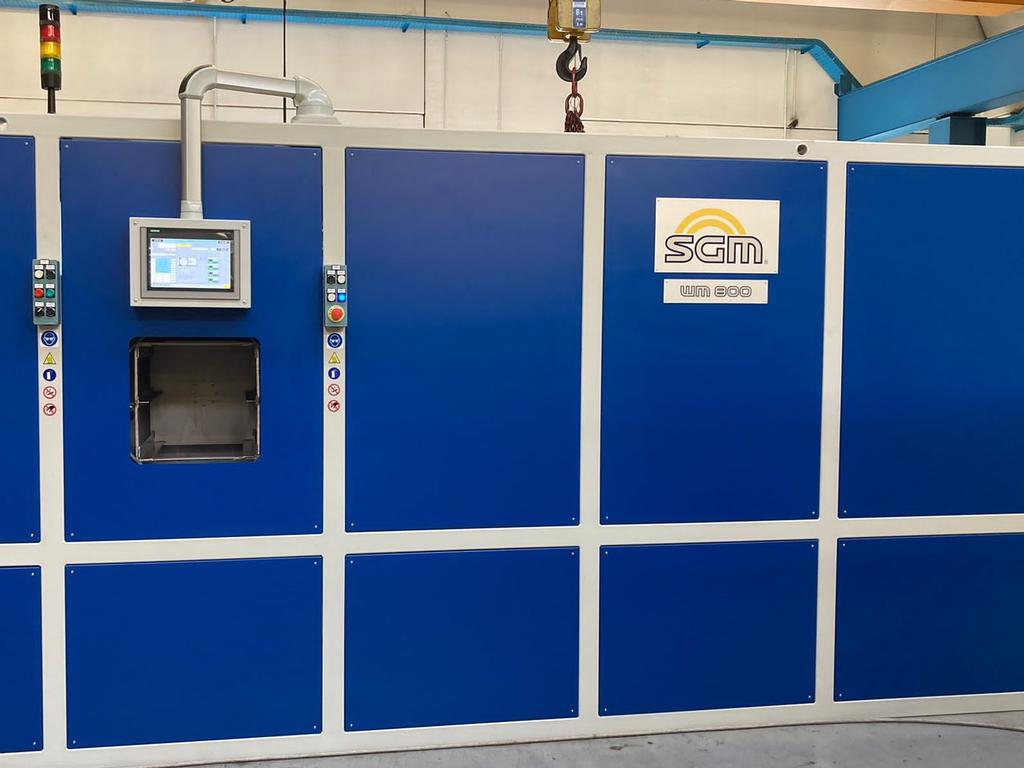

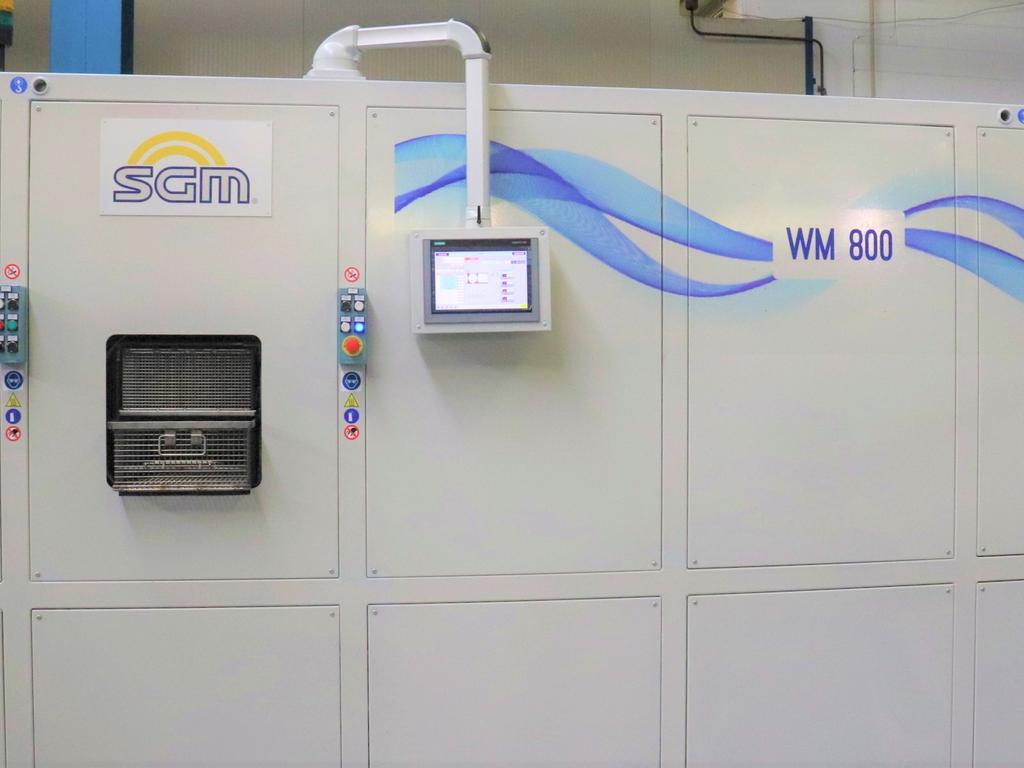

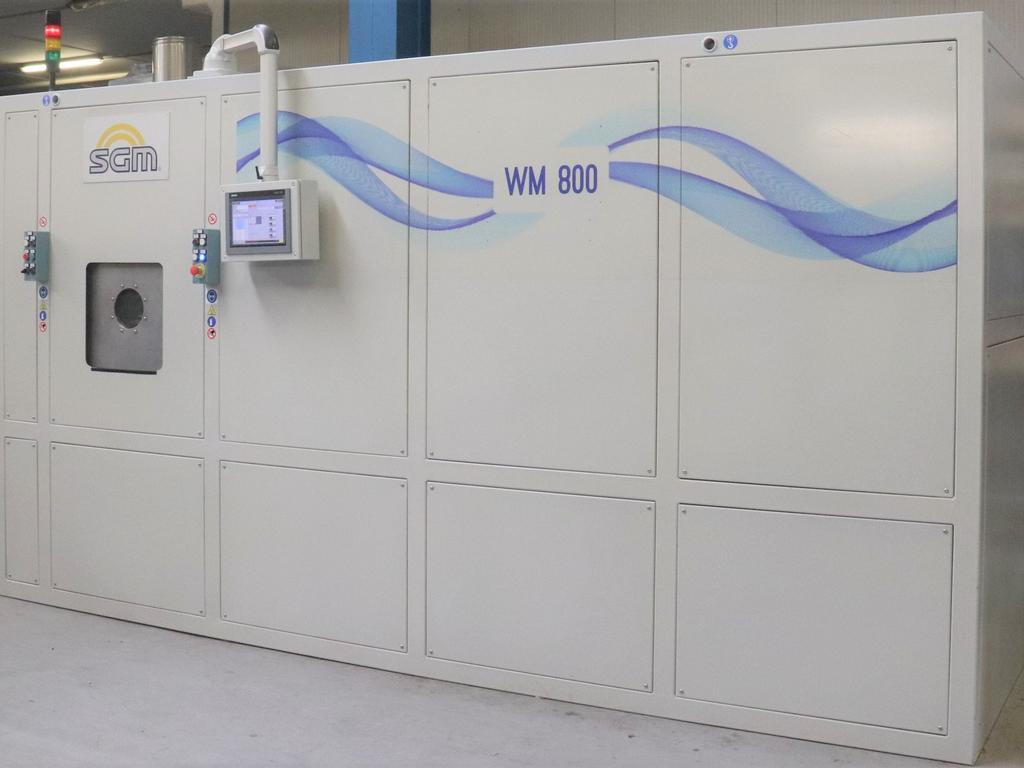

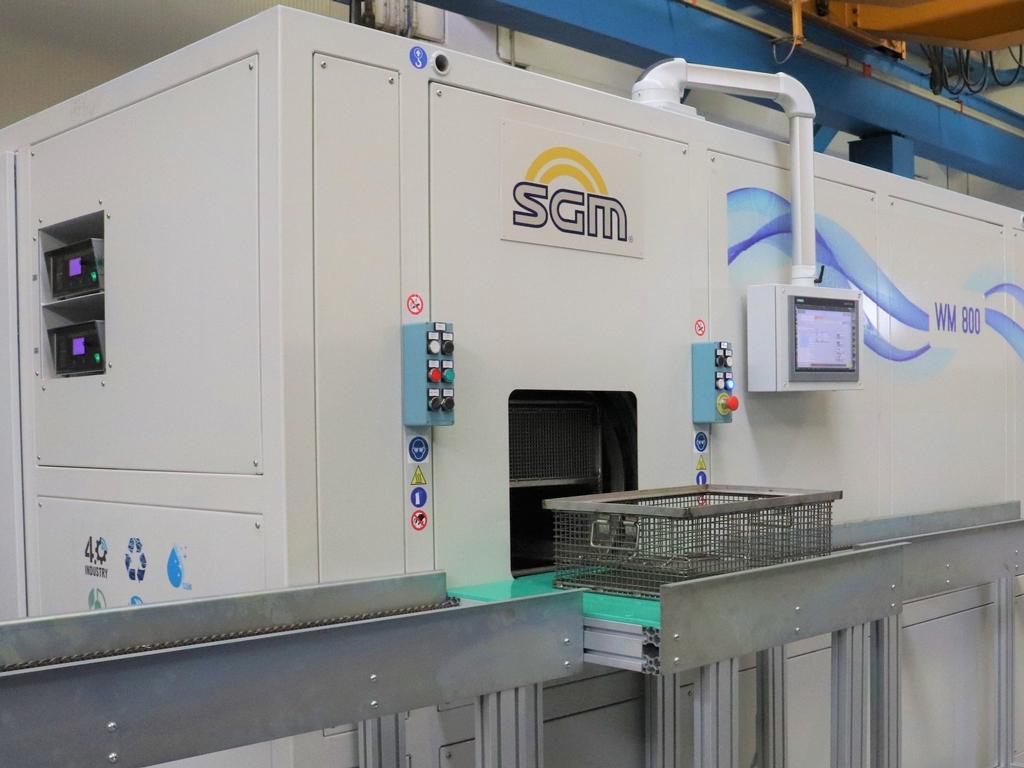

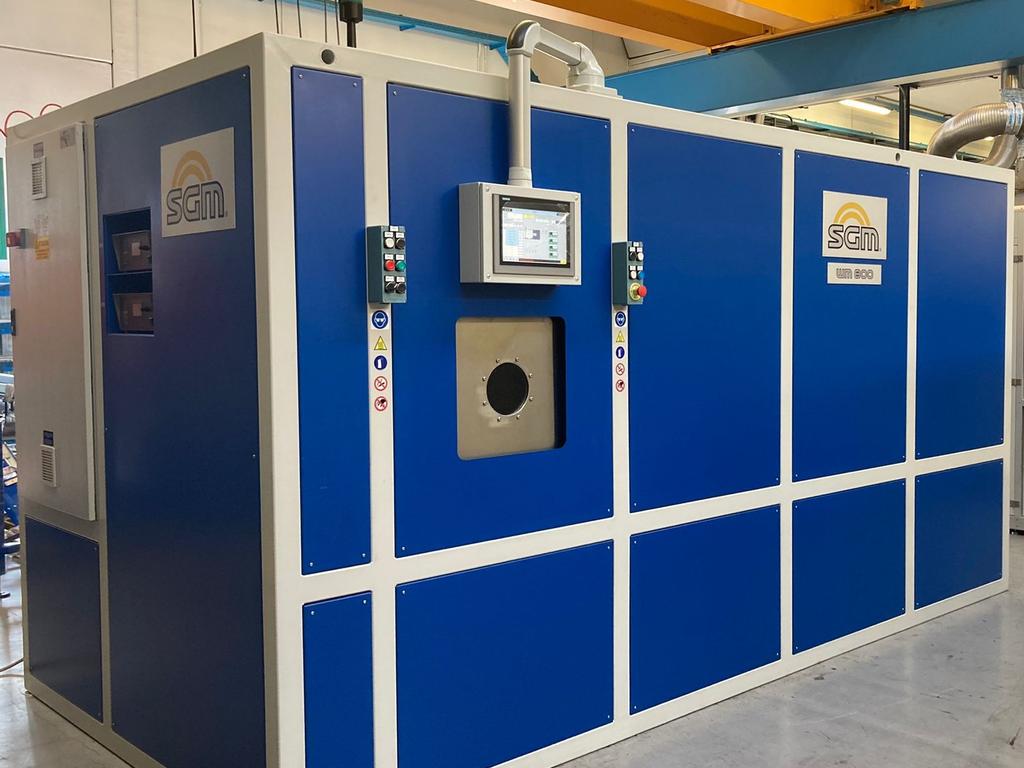

WM800 industrial washing machine was born from SGM experience as an ideal solution for deoxidization needed post thermal deburring.

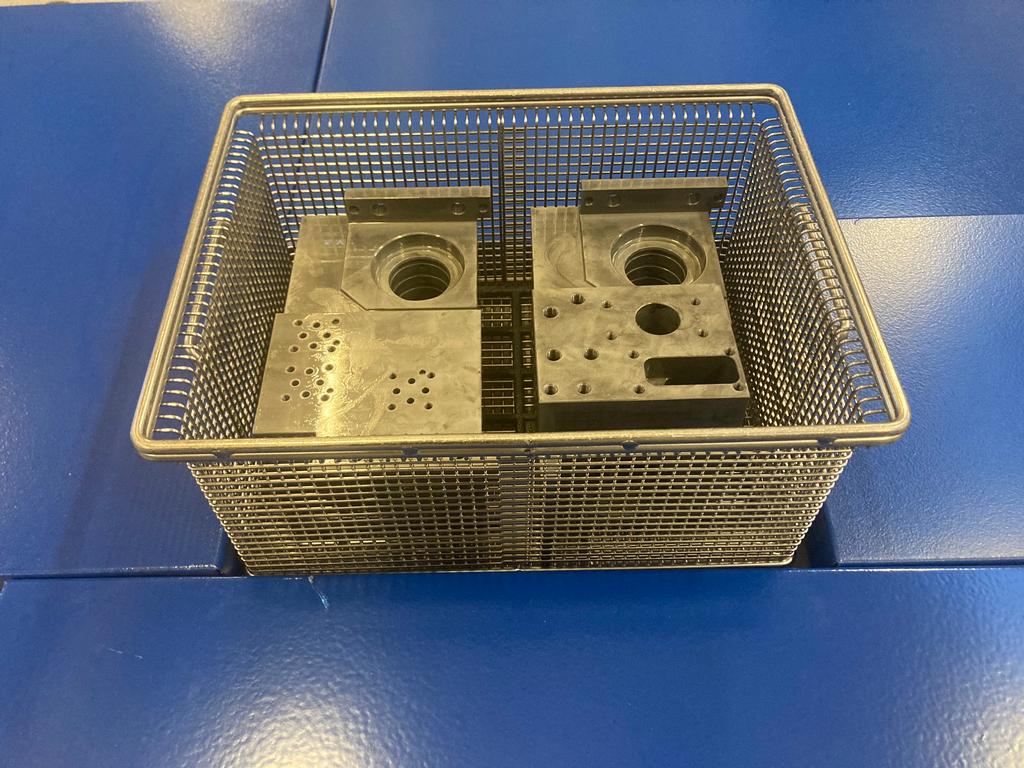

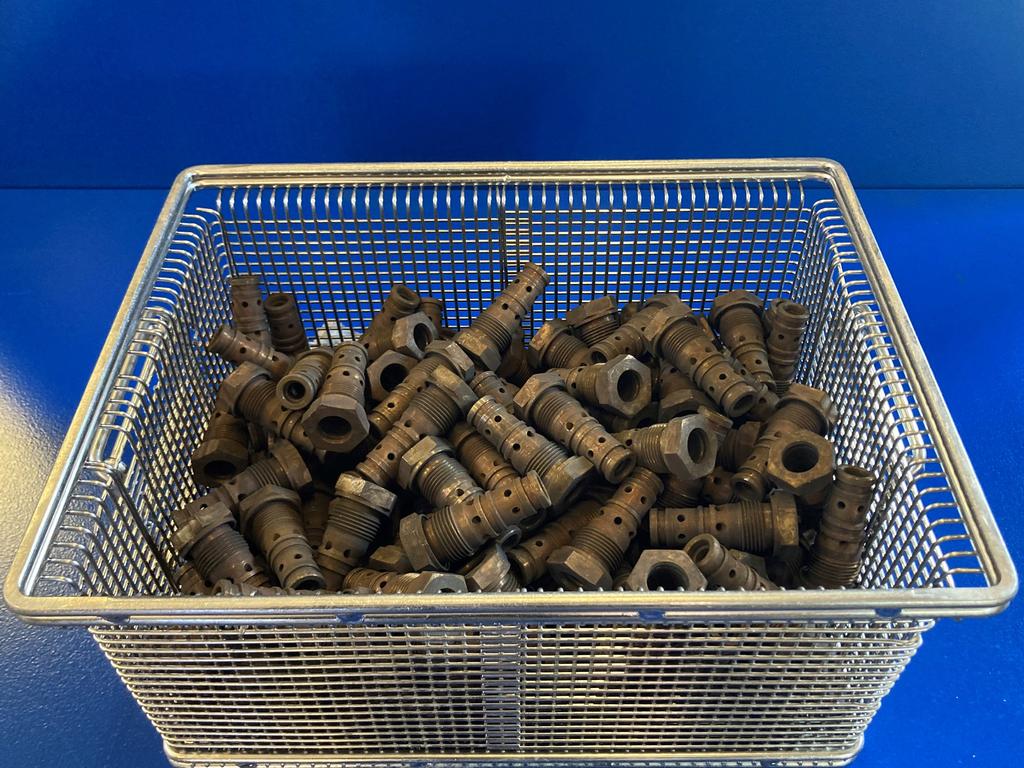

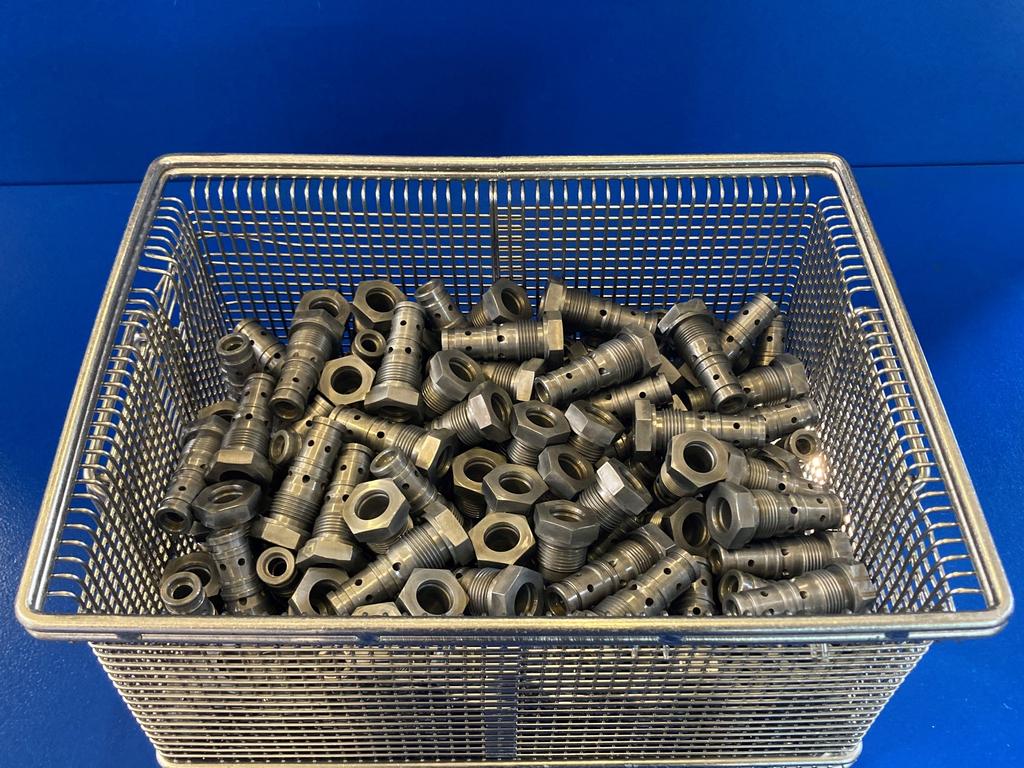

Thermal deburring process generates oxide that adheres to the products making their surface: grey in case of aluminium, black in case of cast iron, iron and steel.

WM 800 industrial washing machine using environmentally friendly products, manages to restore the original appearance of the components.

WM800 uses:

- products with low acidity, without the need for rinsing;

- an ultrasound system that enhances the cycle;

- vacuum pump, to eliminate any traces of liquids on metal surfaces.

The WM800 washing machines can be certified as conforming to INDUSTRY 4.0 measures

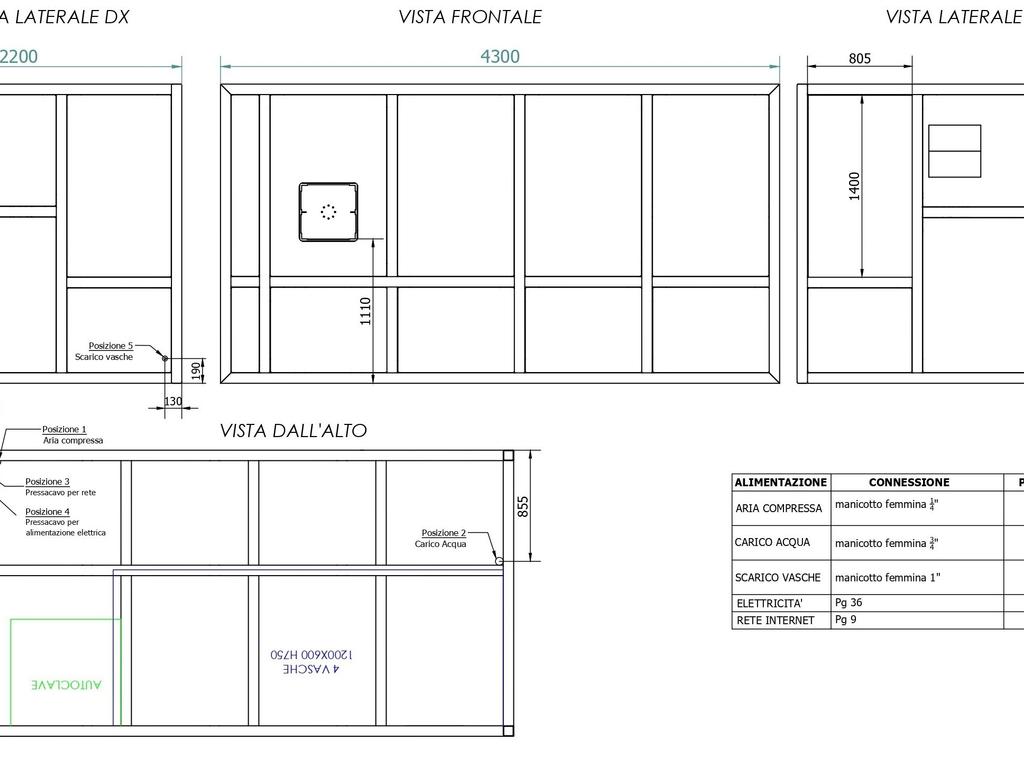

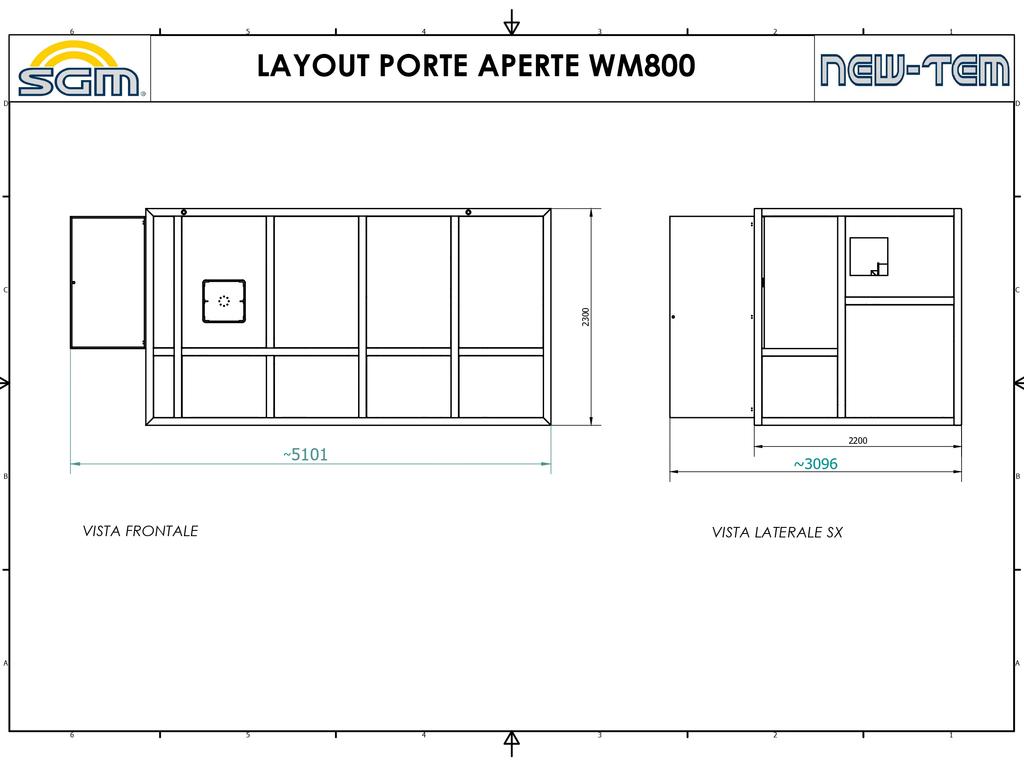

SPECIFICATIONS

 Specifiche
Length [mm]
2200
Width [mm]
4300
Height [mm]
2300
Weight [kg]
3250

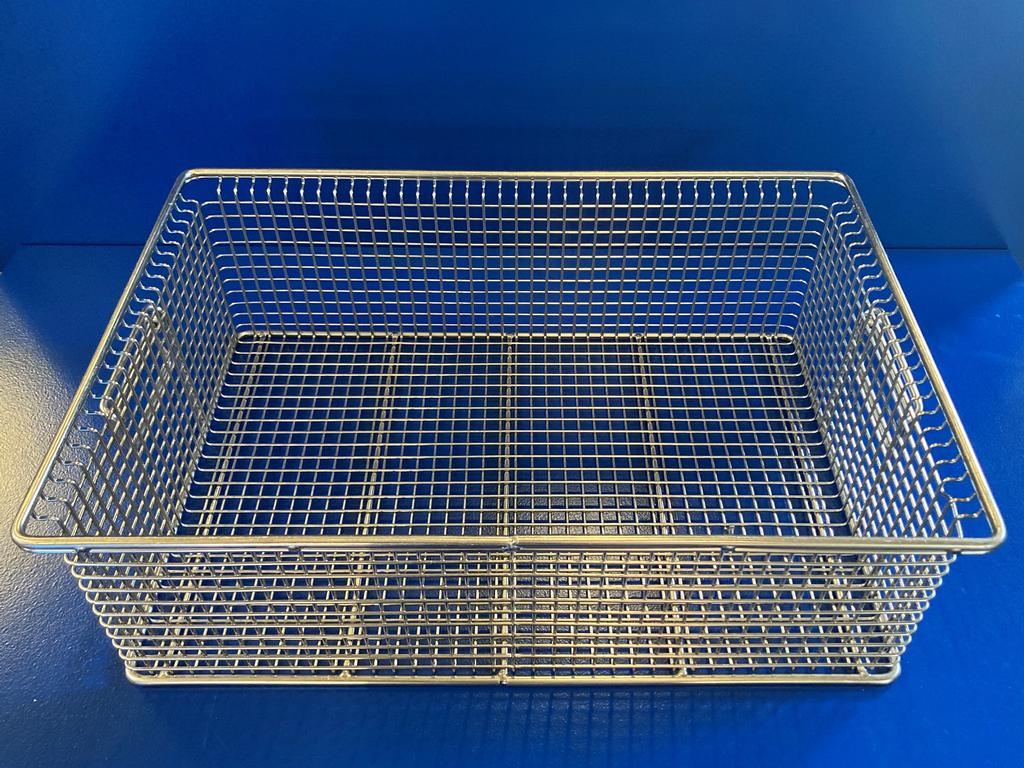

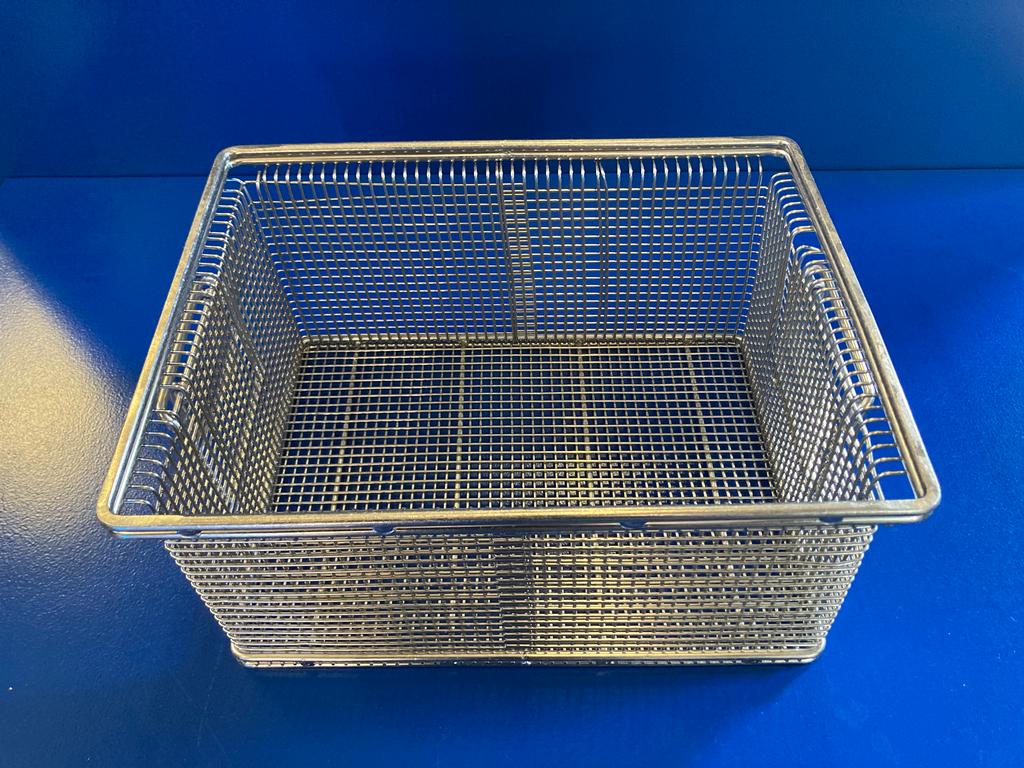

Width [mm]
405
Length [mm]
either 305 or 605
Height [mm]
200
Transducers
4 transducers controlled by 2 generators
Maximum Power
600 W
Operating frequency
20.500 hz
Operating pressure [bar]
max 10 bar
Installed power [kw]
25
Power supply voltage
400V 50Hz (3P+N+T)
Auxiliary voltage
24 V DC
Cycle Time (min)
18

Applications
